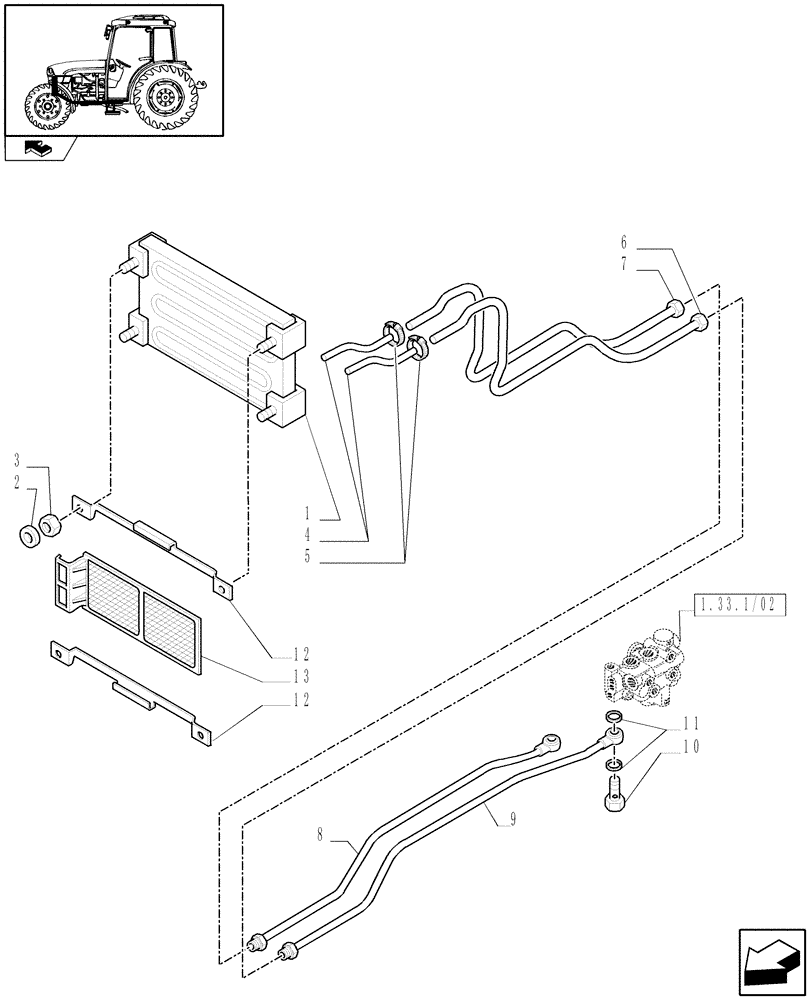

Запчасти Case IH FARMALL 85C (1.27.7[01]) - MEGA FLOW PUMP (62 L/MIN) AND OIL COOLER - RADIATOR & PIPES (VAR.330823-332823) (03) - TRANSMISSION

1

87541745

OIL COOLER

1шт.

2

15896214

NUT,M6, Cl 8

4шт.

3

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5143837

HYDRAULIC HOSE,13.00 mm ID

1шт.

5

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

16 x 25

2шт.

6

84149795

HYD TUBE,14 mm OD

1шт.

7

84149796

HYD TUBE,14 mm OD

1шт.

8

5177864

RIGID TUBE

1шт.

9

5177868

RIGID TUBE

1шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

11

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

12

87739783

SUPPORT

2шт.

13

87739785

FILTER ASSY

1шт.

Mega Flow Pump (62L/MIN) and Oil Cooler, VAR.330823

1шт.

13

87739790

FILTER ASSY

1шт.

Mega Flow Pump (62L/MIN) and Oil Cooler for Dust Ejector, VAR.332823

1шт.
