(1.27.3/04[01]) - 2WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - SOLENOID VALVES (VAR.336401)

Запчасти Case IH FARMALL 85C (1.27.3/04[01]) - 2WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - SOLENOID VALVES (VAR.336401) (03) - TRANSMISSION

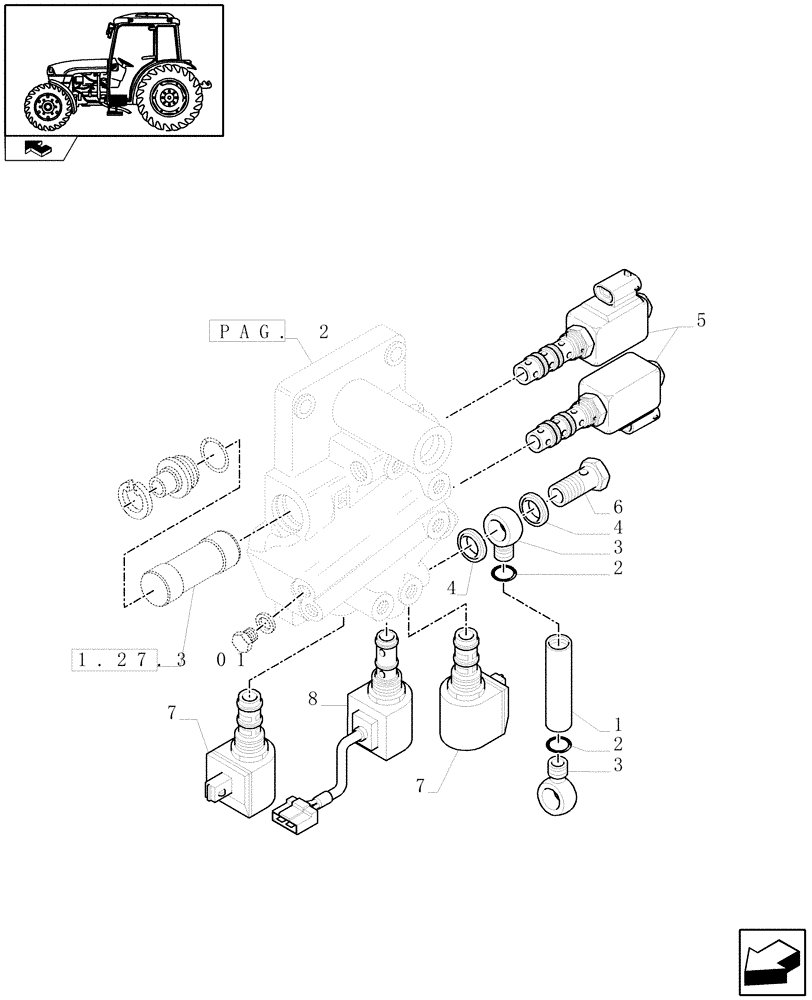

Схема запчастей Case IH FARMALL 85C - (1.27.3/04[01]) - 2WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - SOLENOID VALVES (VAR.336401) (03) - TRANSMISSION
7
7
pag. 2
home
6
1
4
2
8
3
3
5
4
2
1.27.3 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173681

RIGID TUBE

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

3

5173682

BANJO BOLT,M9 x 30mm

2шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

5

84148281

ELECTRO-VALVE

Solenoid, Proportional Pressure

2шт.

5

84148281R

REMAN-HYD VALVE

Remanufactured Electro-Valve

2шт.

5

84148281C

CORE-VALVE HYD

Return Number

2шт.

6

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

1шт.

7

5168052

SOLENOID VALVE

Solenoid, Less Diode

2шт.

8

82008511

SOLENOID VALVE

Solenoid, Dump

1шт.
