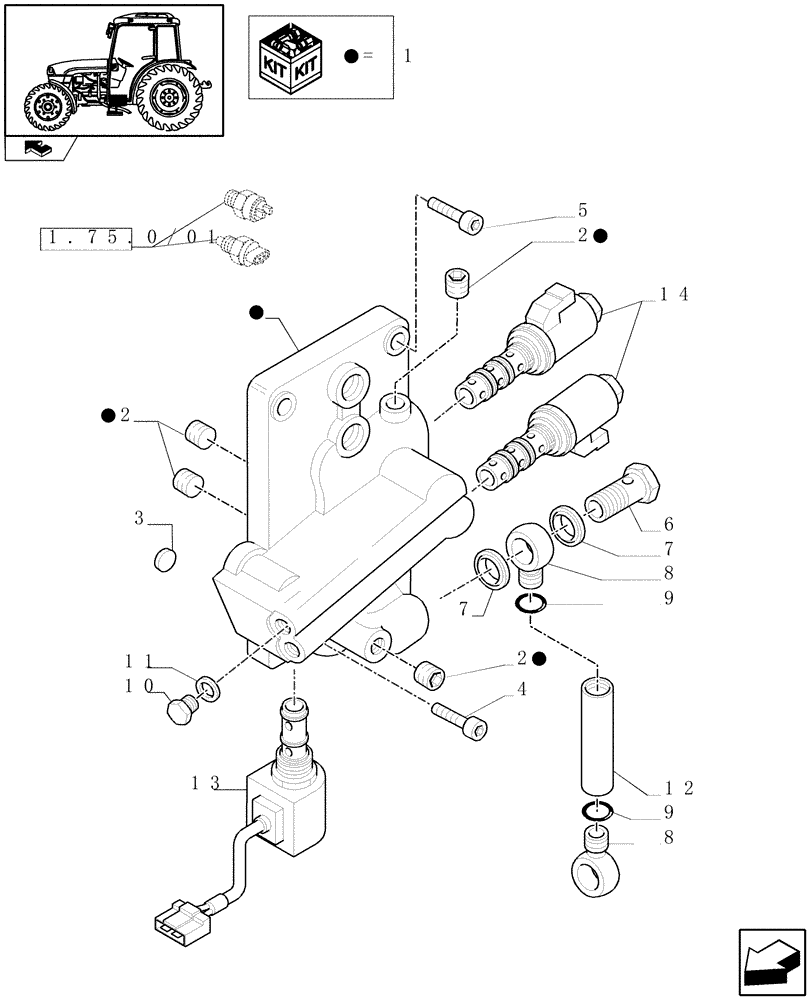

Запчасти Case IH FARMALL 85C (1.27.3/03[01]) - POWER SHUTTLE - CONTROL VALVE WITH SOLENOIDS (03) - TRANSMISSION

1

5178865

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10x1.25

4шт.

3

14328501

PLUG,M16, Tapered

1шт.

4

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2шт.

5

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

6

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

7

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

8

5173682

BANJO BOLT,M9 x 30mm

1шт.

9

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

10

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

11

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

12

5173681

RIGID TUBE

1шт.

13

82008511

SOLENOID VALVE

Solenoid, Dump

1шт.

14

5168054

SOLENOID VALVE

Solenoid, Proportional Pressure

2шт.
