(1.27.3/02[03]) - 4WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - ACCUMULATOR AND PIPES (VAR.332402-339402)

Запчасти Case IH FARMALL 85C (1.27.3/02[03]) - 4WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - ACCUMULATOR AND PIPES (VAR.332402-339402) (03) - TRANSMISSION

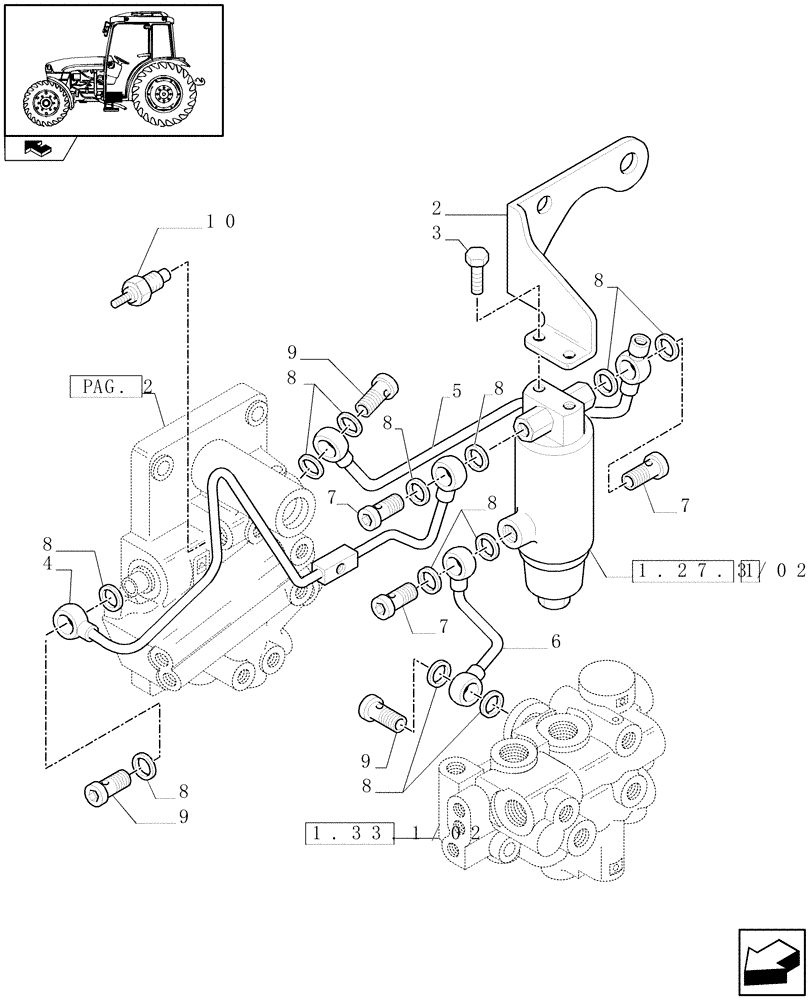

Схема запчастей Case IH FARMALL 85C - (1.27.3/02[03]) - 4WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - ACCUMULATOR AND PIPES (VAR.332402-339402) (03) - TRANSMISSION
9
10
8
7
9
1.33.1/02
3
8
4
8
2
8
5
g
p
1.27.3/02a
home
8
6
8
1
2
9
a
8
7
7
8
.
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87622906

ACCUMULATOR

1шт.

2

5187886

BRACKET

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

4

5193220

RIGID TUBE

1шт.

5

5191298

RIGID TUBE

1шт.

6

5191273

RIGID TUBE

1шт.

7

5181983

HYD CONNECTOR,M10 x 1 27mm L

M10x1x21

2шт.

8

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

9

5176180

BANJO BOLT,M10 x 1 x 17.5mm

4шт.

10

82028133

SENSOR,3/8"-18

Transm. Temp.

1шт.

11

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.
