Запчасти Case IH FARMALL 85C (1.27.3/02[02]) - 4WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - CAPS - C6319 (VAR.332402-339402) (03) - TRANSMISSION

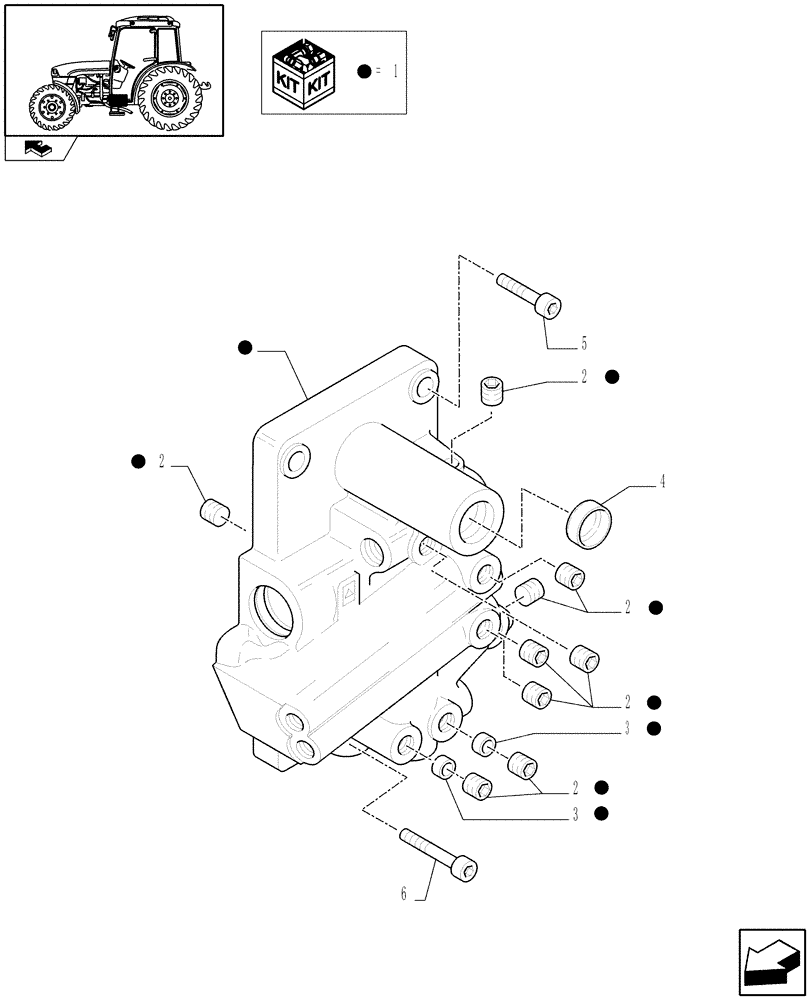

Схема запчастей Case IH FARMALL 85C - (1.27.3/02[02]) - 4WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - CAPS - C6319 (VAR.332402-339402) (03) - TRANSMISSION
1
2
2
1
1
3
1
home
1
3
2
1
4
5
1
2
2
6
1
1

Артикул

Название

Примечание

Количество

1

47126468

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10x1.25

9шт.

3

5173959

HYD CONNECTOR

2шт.

4

14329801

PLUG,M32, Tapered

1шт.

5

14307630

HEX SOC SCREW,M10 x 1.25 x 35mm, 10.9

2шт.

6

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

2шт.

6

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

1шт.

Выбрано товаров: 7
