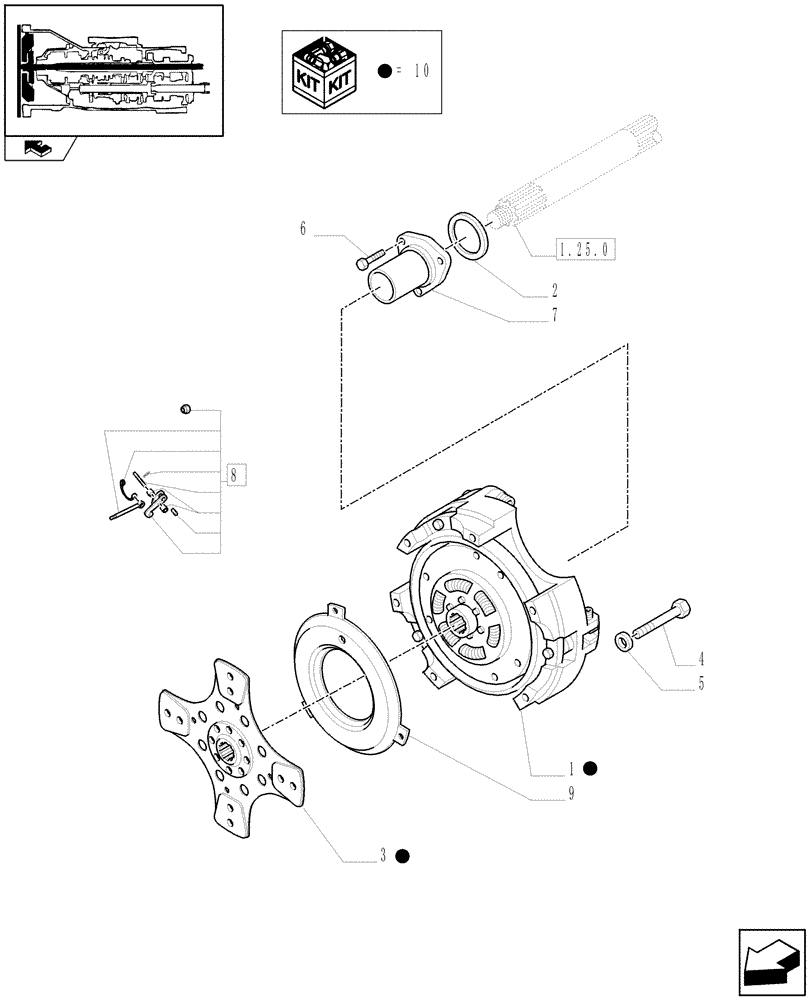

Запчасти Case IH FARMALL 85C (1.25.0/01[01]) - 16X16 AND 32X16 HYDRAULIC TRANSMISSION - CLUTCH (VAR.330275-330278) (03) - TRANSMISSION

1

47134873

CLUTCH

Incl.8, 9, Serial Range: -C5949

1шт.

1

87732490R

REMAN-CLUTCH ASSY

FARMALL 85C Start Serial: D5949 (1/07-), Reman for New P/N 87732485

1шт.

1

87732490C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

1

87732490

CLUTCH,327mm OD

Incl. 8, 9, Start Serial: D5949

1шт.

1

87732490R

REMAN-CLUTCH ASSY

FARMALL 85C Serial Range:-C5949 (1/07-), Reman for New P/N 47134873

1шт.

1

87732490C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

2

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

3

47134874

CLUTCH PLATE,280mm OD

1шт.

3

47134874R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

3

47134874C

CORE-CLUTCH PLATE

Return Part Number

1шт.

4

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

7

5177143

COVER

1шт.

8

47137136

KIT

PTO Lever, Serial Range: -C5949

1шт.

8

87741845

KIT

, Start Serial: D5949

1шт.

9

5196792

PRESSURE RING

, Serial Range: -C5949

1шт.

9

87594144

PRESSURE RING

, Start Serial: D5949

1шт.

10

87732485

CLUTCH

ASSY, Start Serial: D5949

1шт.

10

87732490R

REMAN-CLUTCH ASSY

1шт.

10

87732490C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.
