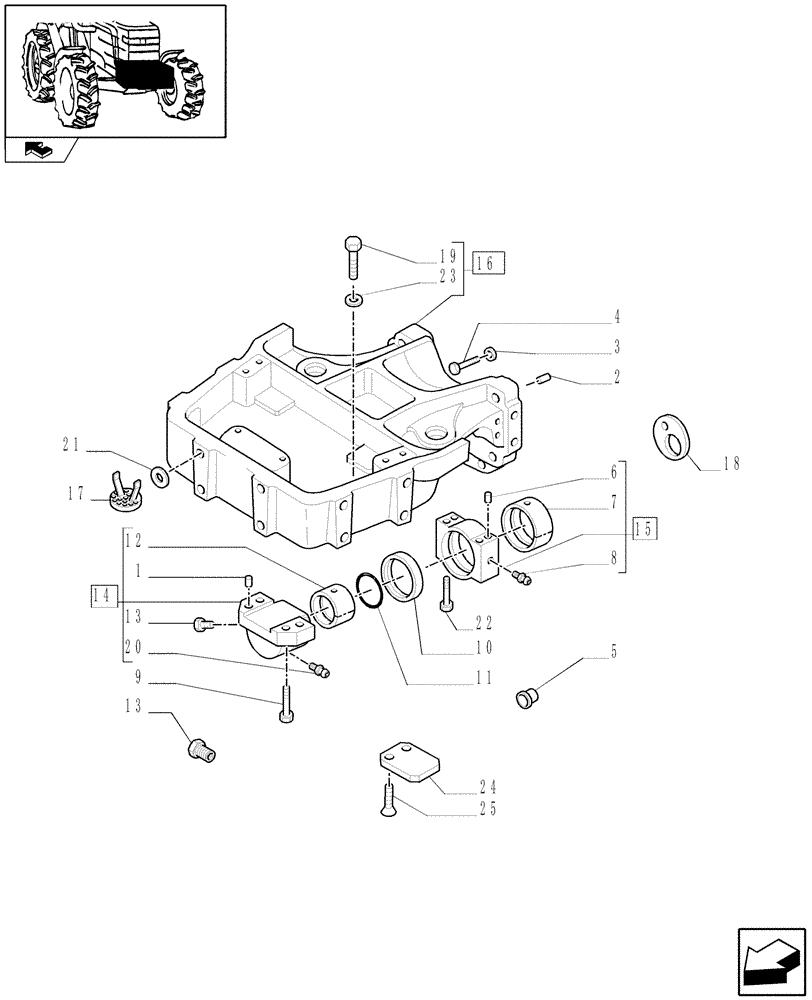

Запчасти Case IH FARMALL 85C (1.21.1) - SUPPORT (03) - TRANSMISSION

1

10837710

DOWEL,M10 x 25

2шт.

2

4668595

DOWEL,18mm OD x 22mm L

2шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20x38x5.2

4шт.

4

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M20x1.5x120

2шт.

4

15989734

BOLT,Hex, M20 x 1.5 x 130mm, Cl 10.9

2шт.

5

5171790

PLUG,18mm, Black

18x12x24

1шт.

6

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

8

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

45°

1шт.

9

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18x1.5x65

2шт.

10

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

99x115x7.5

2шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52x57x42

1шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

2шт.

14

5140452

SUPPORT

1шт.

15

47131328

SUPPORT

1шт.

16

87550876

SUPPORT

ASSY, 4WD

1шт.

17

5120218

GRILLE

1шт.

18

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

19

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

20

13407211

LUBE NIPPLE,M10 x 1

1шт.

21

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

1шт.

21

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

21

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

21

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

21

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

Black

1шт.

22

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

23

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

24

87572509

SPACER

2шт.

Front axle reduction oscillation plates, VAR.331497

1шт.

25

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

Front axle reduction oscillation plates, VAR.331497

1шт.
