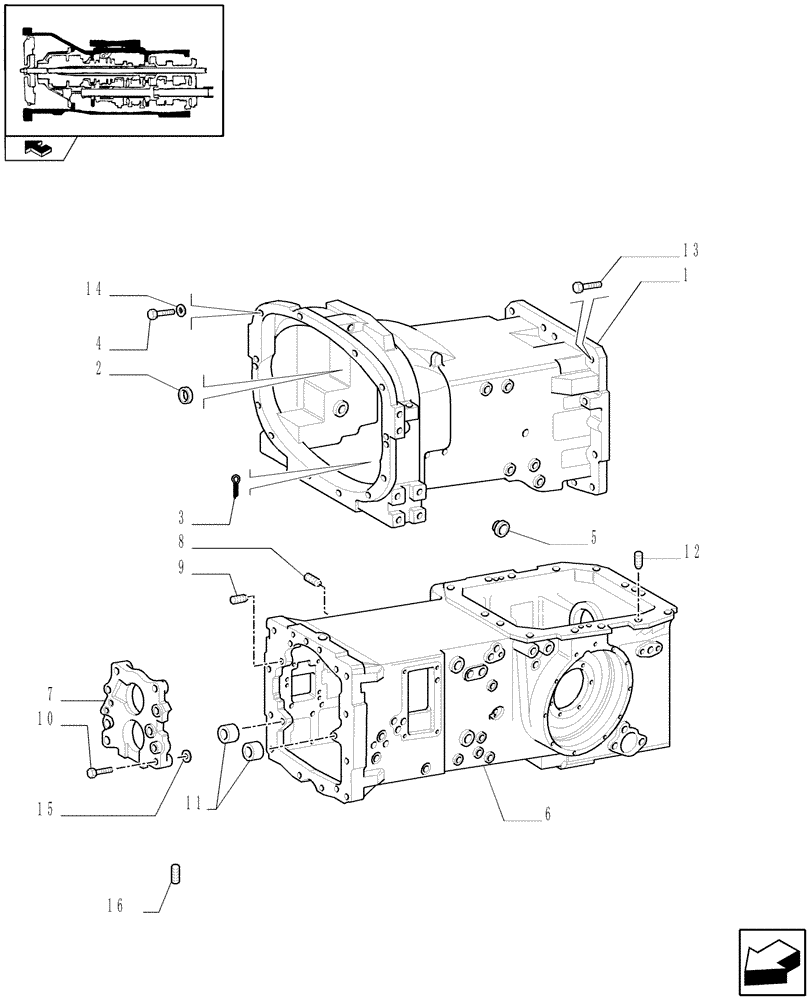

Запчасти Case IH FARMALL 85C (1.21.0[01]) - TRACTOR BODY (03) - TRANSMISSION

1

5178510

CLUTCH HOUSING

1шт.

2

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

4шт.

3

10798204

COTTER PIN,M6.3 x 32

1шт.

4

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

11шт.

4

15541031

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

1шт.

4

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

M12x1.25x45

11шт.

5

14328601

PLUG,M18, Tapered

3шт.

5

5171614

PLUG,27mm OD

D=27

4шт.

6

87353887

TRANSMISSION HOUSING

1шт.

6

87591773

TRANSMISSION HOUSING

Hi-Lo

1шт.

7

5183692

COVER

1шт.

7

5183729

COVER

1шт.

16x16 Hydraulic Transm. with Synchro Gears & Power Shuttle, VAR.330278

1шт.

8

5153109

DOWEL,10mm OD x 15mm L

10x15

6шт.

9

4988170

PIN,10mm OD x 20mm L

M10x20

12шт.

10

14331721

HEX SOC SCREW,M12 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

10

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

11

44908048

BUSHING,16mm OD x 14mm L

D=16

2шт.

12

5119529

DOWEL,15mm OD x 22mm L

M15x22

2шт.

13

15540631

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

10шт.

13

14331321

HEX SOC SCREW,M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

14

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

12шт.

15

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

16

4658441

DOWEL,10mm OD x 20mm L

2шт.
