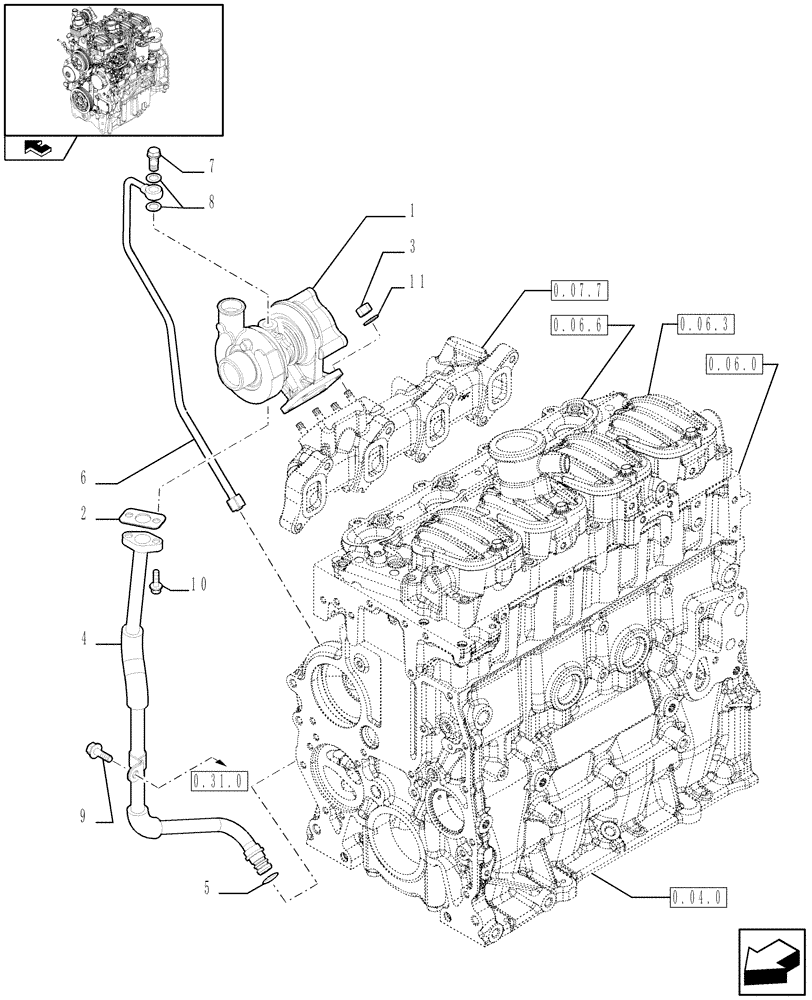

Запчасти Case IH FARMALL 80 (0.24.0) - TURBOCHARGER (01) - ENGINE

1

504265216

TURBOCHARGER

1шт.

2

500370706

GASKET

1шт.

3

500322677

NUT,M8

FLANGE NUT

4шт.

4

504164226

PIPE

1шт.

5

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

D = 13.9 mm Thk = 2.6 mm

1шт.

6

504164224

PIPE

1шт.

7

4864080

BANJO BOLT,M10 x 1.25

M10 x 1.25

1шт.

8

17750480

SEAL,12.2mm ID x 17.8mm OD x 1.5mm Thk

2шт.

9

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

10

2852101

FLANGE BOLT,Hex, M6 x 16mm

2шт.

11

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

8.4 x 16

4шт.
