Запчасти Case IH FARMALL 80 (1.92.94[03]) - CAB - HEATING SYSTEM - PIPES (10) - OPERATORS PLATFORM/CAB

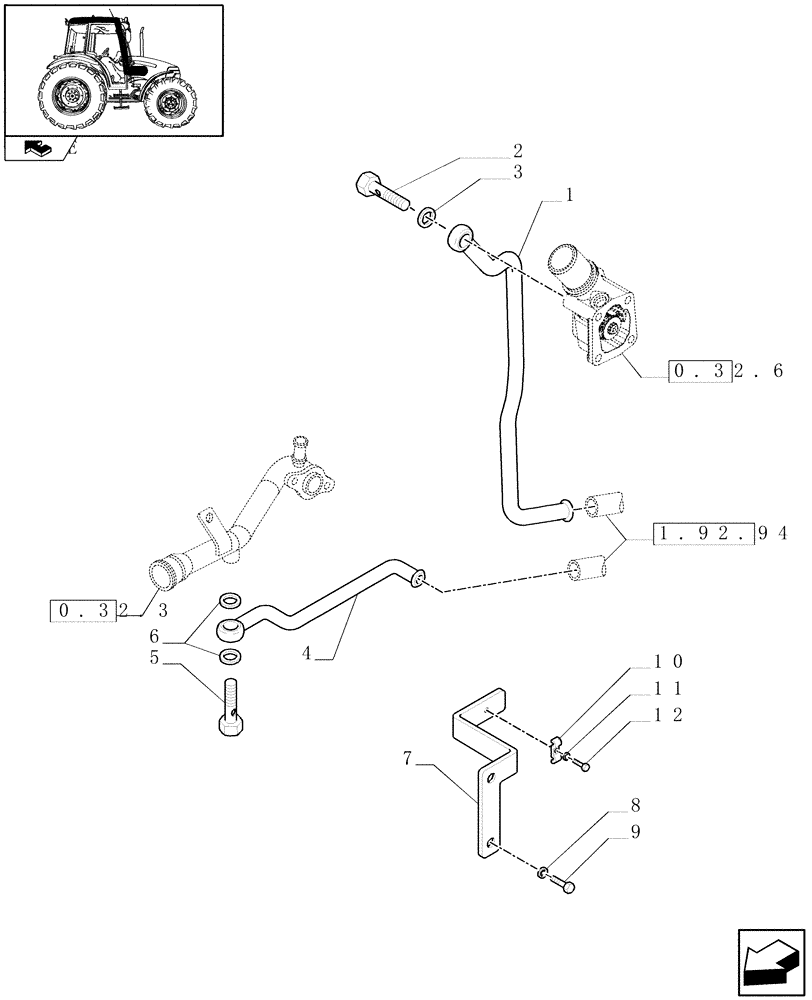

Схема запчастей Case IH FARMALL 80 - (1.92.94[03]) - CAB - HEATING SYSTEM - PIPES (10) - OPERATORS PLATFORM/CAB
10
3
11
0.32.3
home
0.32.6
7
9
5
1.92.94 05
1
6
2
8
4
12

Артикул

Название

Примечание

Количество

1

87489087

PIPE

Feed

1шт.

2

87699502

BANJO BOLT,M14 x 27mm

1шт.

3

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

4

87489089

PIPE

Return

1шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

1шт.

6

2852356

SEALING WASHER

2шт.

7

87489095

SUPPORT

1шт.

8

12601574

WAVE WASHER,Wave, M13

2шт.

9

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

10

87489093

COLLAR

1шт.

11

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

12

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 12
