(1.92.90/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - CAB FRAME (VAR.330120-331120)

Запчасти Case IH FARMALL 80 (1.92.90/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - CAB FRAME (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB

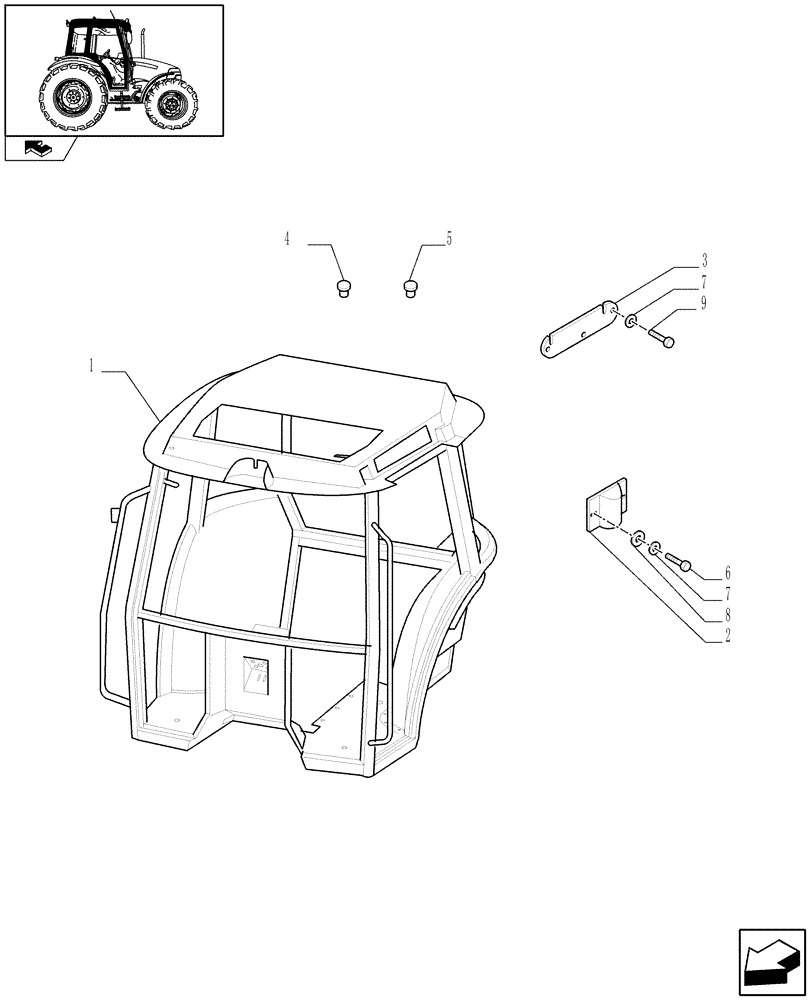

Схема запчастей Case IH FARMALL 80 - (1.92.90/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - CAB FRAME (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB
4
3
6
7
2
1
5
7
9
home
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84407149

CAB FRAME

1шт.

2

5094127

PLUG

2шт.

3

84417845

PLATE

1шт.

4

5097512

PLUG

D=24

1шт.

5

87679075

BUSHING,12.1mm ID x 26mm OD x 6mm L

1шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

7

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

4шт.

8

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

4шт.

9

14072411

BOLT,Cross Thin Cheese Hd, M5 x 16mm

3шт.
