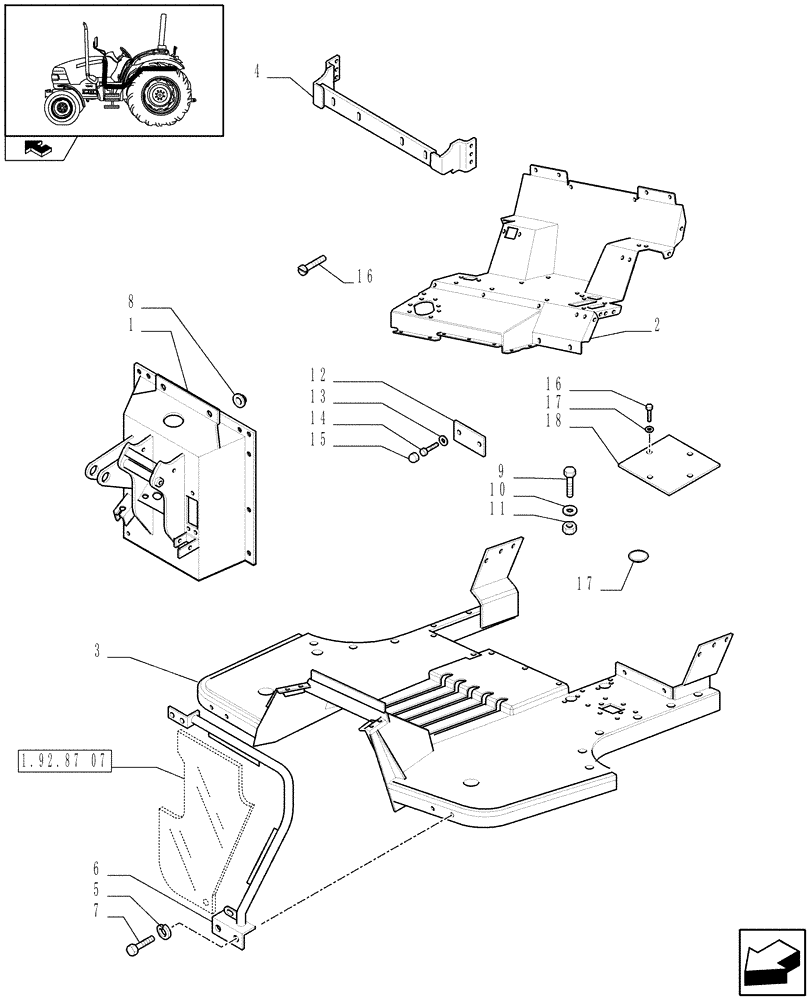

Запчасти Case IH FARMALL 80 (1.92.87[04]) - MUDGUARDS AND FOOTBOARDS - L/CAB - C6752 (10) - OPERATORS PLATFORM/CAB

1

87624512

GUARD

JX60 - FARMALL60, JX70 - FARMALL70, Serial Range: -C6811

1шт.

1

84404376

GUARD

JX80 - FARMALL80

1шт.

Power Shuttle e Servo PTO for Mechanical Differential Lock, VAR.330120-331120

1шт.

1

84251708

GUARD

JX60 - FARMALL60, JX70 - FARMALL70, Start Serial: D6811

1шт.

2

87607093

PLATE

1шт.

2

87617233

PLATE

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.

3

87537918

FLOOR

1шт.

4

5091865

SUPPORT

1шт.

4

87594497

SUPPORT

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

33шт.

6

87725193

SUPPORT

LH

1шт.

6

87725192

SUPPORT

RH

1шт.

7

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

23шт.

8

87679075

BUSHING,12.1mm ID x 26mm OD x 6mm L

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

10

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

12

5092169

COVER

1шт.

13

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

14

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

15

5089481

CAP,17mm OD

2шт.

16

13299117

SCREW

6шт.

17

84415630

PLUG

1шт.
