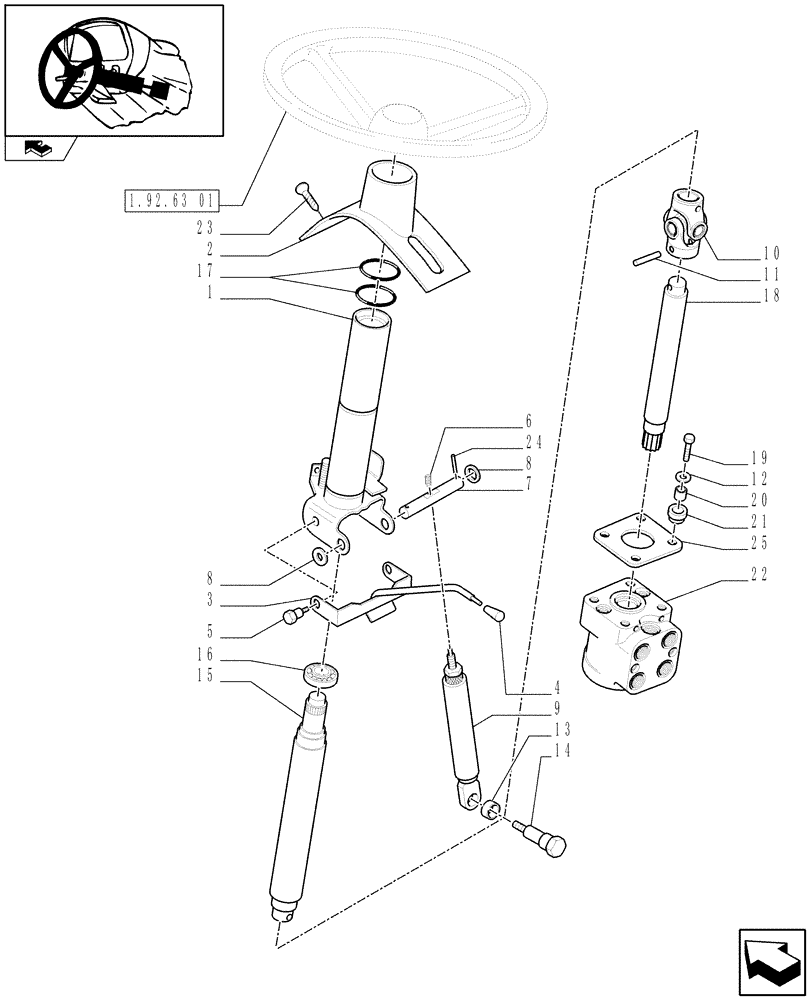

Запчасти Case IH FARMALL 80 (1.92.63/01[01]) - POWER SHUTTLE E SERVO PTO DIFF. LOCK - STEERING COLUMN (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB

1

84403904

STEERING COLUMN

1шт.

2

87654786

PROTECTOR

1шт.

3

84415628

LEVER

1шт.

4

5177017

HANDLE GRIP

1шт.

5

5089591

BOLT,Hex, M10 x 1.25 x 41mm

2шт.

6

5089761

SPRING

1шт.

7

5093215

PIN

, Serial Range: -C7009

1шт.

7

84478473

PIN,16mm OD x 136mm L

, Start Serial: D7009

1шт.

8

10520204

WASHER,16.4mm ID x 28mm OD x 3mm Thk

2шт.

9

87732038

GAS STRUT

1шт.

10

5097932

UNIVERSAL JOINT

1шт.

11

14604370

ROLL PIN,M6 x 36, Slotted

2шт.

12

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

5шт.

13

5089756

SLEEVE,13mm ID x 17mm OD x 6.5mm L

1шт.

14

5089588

BOLT

1шт.

15

5097931

SHAFT

1шт.

16

5090125

BALL BEARING,25 mm ID x 42 mm OD x 9 mm

2шт.

17

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

2шт.

18

5097930

SHAFT

1шт.

19

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

20

5091784

SPACER,10.1mm ID x 14mm OD x 12mm L

4шт.

21

5091785

BUSHING,14mm ID x 20mm OD x 8mm L

4шт.

22

84174896

HYDRAULIC STEERING

2WD

1шт.

23

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

24

10733601

COTTER PIN,M3.2 x 22

2шт.

25

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.
