Запчасти Case IH FARMALL 80 (1.92.26/02[03]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - PTO CONTROLS - C9262 (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB

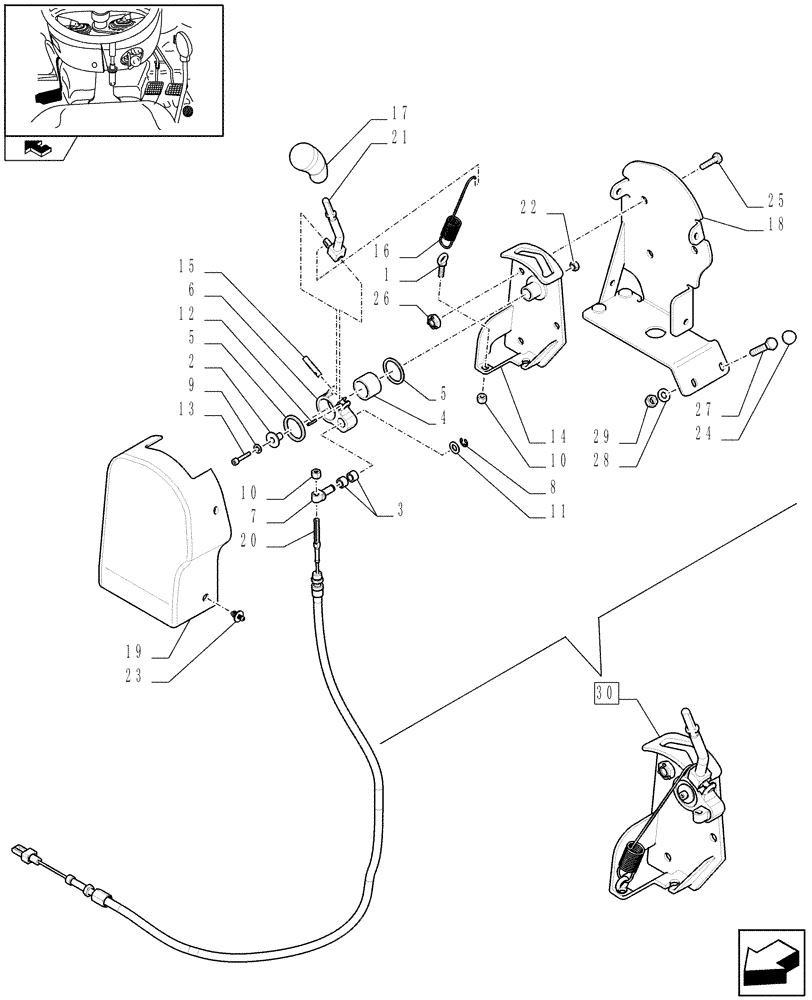

Схема запчастей Case IH FARMALL 80 - (1.92.26/02[03]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - PTO CONTROLS - C9262 (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB
21
23
8
27
home
19
4
22
3
13
15
10
5
17
25
20
29
12
18
1
24
28
2
7
26
14
5
6
11
16
10
9
30

Артикул

Название

Примечание

Количество

1

5115351

HOOK,M6 x 1

1шт.

2

5183865

BUSHING

1шт.

3

47743308

NYLON BEARING,Nylon, 8mm ID x 12mm OD x 13mm W

D=8

1шт.

4

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

5

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

2шт.

6

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

7

47131077

PIN,8mm

1шт.

8

11087876

CIRCLIP,M7

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

12574221

NUT,M6 x 1, Cl 10

2шт.

11

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

12

14159674

ROLL PIN,2.5mm OD x 14mm L

2.5 x 14

1шт.

13

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

1шт.

14

47123109

SUPPORT

1шт.

15

47123110

PIN,30mm x 6mm

1шт.

16

47123119

SPRING

1шт.

17

47127321

KNOB

1шт.

18

84403891

SUPPORT

1шт.

19

84388724

COVER

1шт.

20

47123120

CABLE

1шт.

21

5187788

SHIFTER FORK

1шт.

22

10725914

LOCK NUT,M6 x 1, Cl 04

2шт.

23

5098024

RIVET,6mm OD x 11mm L

4шт.

24

5089481

CAP,17mm OD

2шт.

25

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

27

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

28

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

29

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

30

47123242

PTO

ASSY, Incl. 1-16, 21

1шт.

Выбрано товаров: 29
