Запчасти Case IH FARMALL 80 (1.92.10/01[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - THROTTLE CONTROL LINKAGE (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB

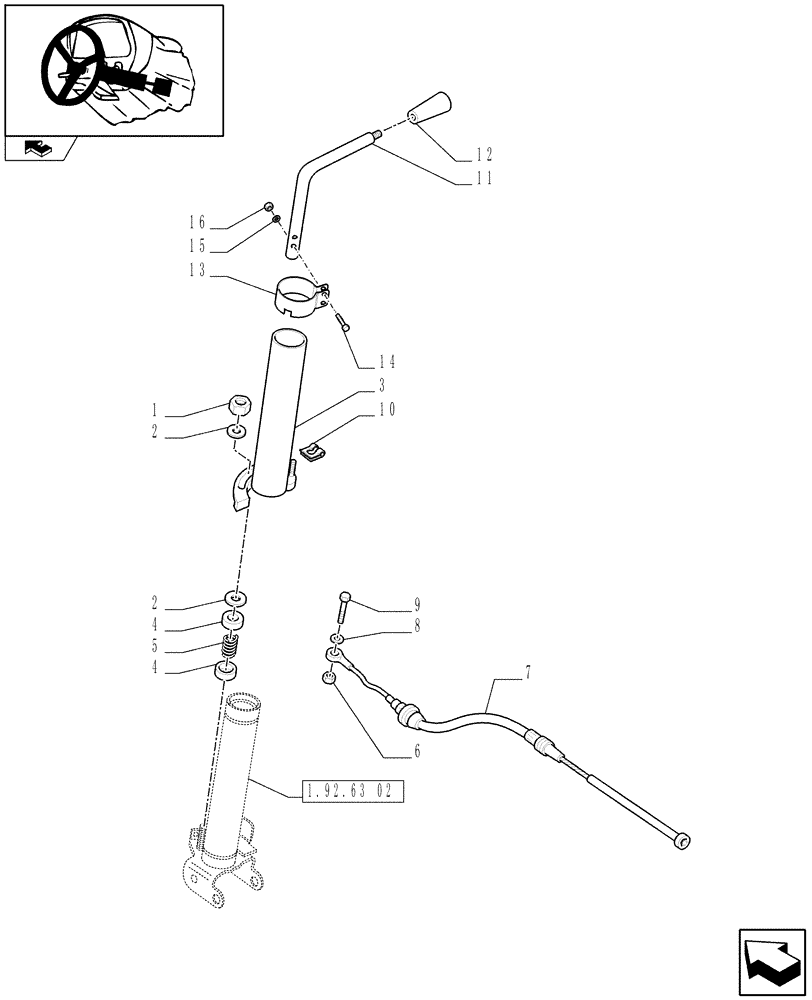

Схема запчастей Case IH FARMALL 80 - (1.92.10/01[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - THROTTLE CONTROL LINKAGE (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB
6
8
5
12
15
3
1.92.63 02
2
home
10
4
14
7
13
9
16
2
11
1
4

Артикул

Название

Примечание

Количество

1

16105021

LOCK NUT,M12 x 1.25, Cl 10

1шт.

2

5152998

WASHER,12.5mm ID x 34mm OD x 2mm Thk

2шт.

3

84403910

LEVER

1шт.

4

589743

CUP WASHER

2шт.

5

5118181

SPRING

1шт.

6

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

7

87626443

CABLE,1123mm L

1123MM

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

9

87626456

SCREW,Hex Skt, M5 x 65mm

1шт.

10

11063876

SPRING CLIP,M5 x 4mm

1шт.

11

84417844

LEVER

W/CAB, Start Serial: D6874

1шт.

11

84403909

LEVER

L/CAB, Start Serial: D6874

1шт.

12

5087836

KNOB

1шт.

13

84417846

CLAMP,54mm ID

W/CAB, Start Serial: D6874

1шт.

13

84413891

COLLAR

L/CAB, Start Serial: D6874

1шт.

14

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

15

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

16

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

Выбрано товаров: 18
