Запчасти Case IH FARMALL 80 (1.91.1/01) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - SWITCHES & CONTROLS (VAR.330384-743909) (10) - OPERATORS PLATFORM/CAB

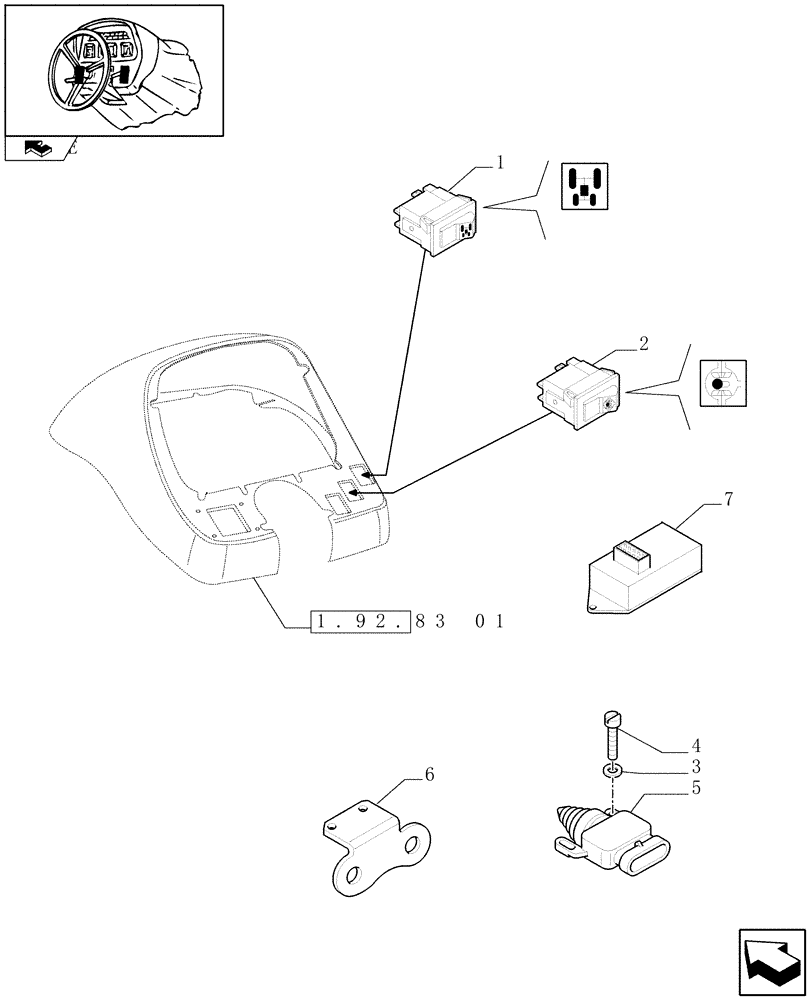

Схема запчастей Case IH FARMALL 80 - (1.91.1/01) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - SWITCHES & CONTROLS (VAR.330384-743909) (10) - OPERATORS PLATFORM/CAB
7
5
1
1.92.83 01
home
4
3
6
2

Артикул

Название

Примечание

Количество

1

47128548

TOGGLE SWITCH

DT

1шт.

2

5184399

DIFF LOCK SWITCH

Diff. Lock

1шт.

3

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

2шт.

4

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

5

47137022

SWITCH

1шт.

6

84128726

SUPPORT

1шт.

7

84130842

MODULE

1шт.

Выбрано товаров: 7
