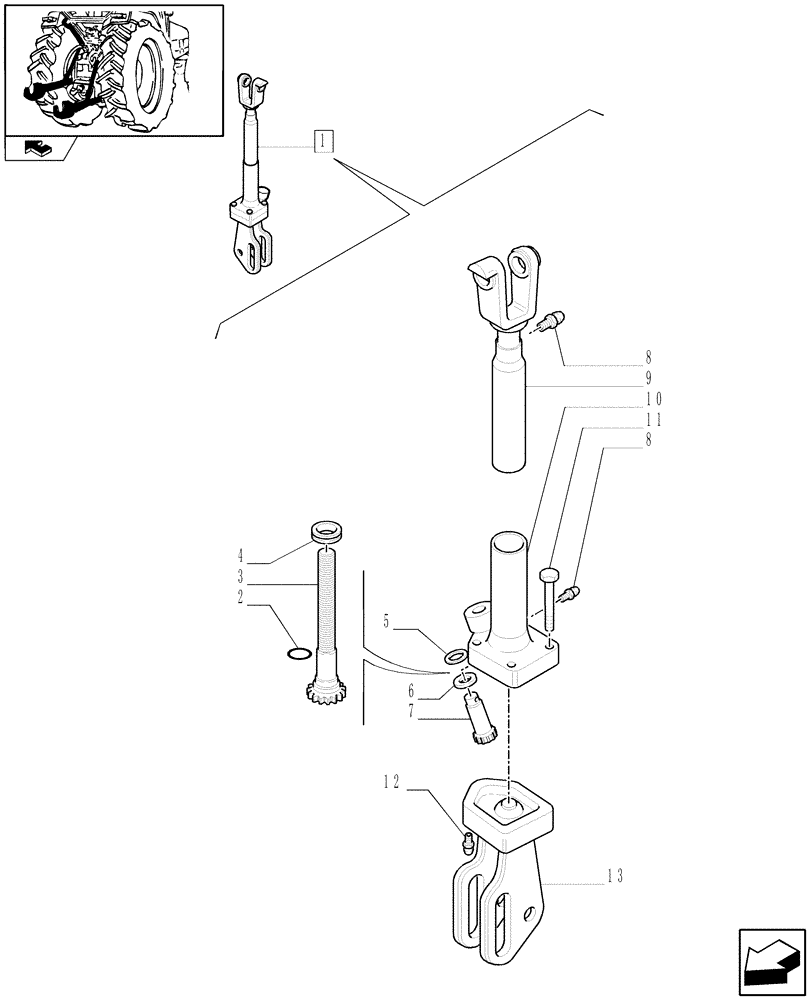

Запчасти Case IH FARMALL 80 (1.89.6/ A) - IMPLEMENT CARRIER - BREAKDOWN (09) - IMPLEMENT LIFT

1

5093186

LIFT LINK

ASSY

1шт.

Valid for 60 and 70 Models only

1шт.

1

5093187

UPPER LINK

ASSY

1шт.

Valid for 80 Model only

1шт.

1

5097277

ADJUSTMENT ROD

ASSY

1шт.

For Turn Buckle

1шт.

Valid for 60 and 70 Models only

1шт.

1

5092248

UPPER LINK

ASSY

1шт.

For Turn Buckle

1шт.

Valid for 80 Model only

1шт.

2

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

3

5093693

THREADED ROD

1шт.

Valid for 60 and 70 Models only

1шт.

3

5093701

HITCH PIN

1шт.

Valid for 80 Model only

1шт.

3

5097289

THREADED ROD

1шт.

For Turn Buckle

1шт.

Valid for 60 and 70 Models only

1шт.

4

26800800

BALL BEARING

1шт.

5

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

6

4999029

WASHER,16.5mm ID x 27mm OD x 6mm Thk

1шт.

7

5130441

DRIVING GEAR

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

2шт.

9

5093690

FORK

1шт.

Valid for 60 and 70 Models only

1шт.

9

5093699

FORK,M27 x 3

1шт.

Valid for 80 Model only

1шт.

9

5097283

FORK

1шт.

For Turn Buckle

1шт.

Valid for 60 and 70 Models only

1шт.

10

5139391

HOUSING

1шт.

10

5097287

TUBE

1шт.

For Turn Buckle

1шт.

Valid for 60 and 70 Models only

1шт.

11

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

4шт.

12

13410911

LUBE NIPPLE

1шт.

13

5093691

FORK

1шт.

Valid for 60 and 70 Models only

1шт.

13

5093700

FORK

1шт.

Valid for 80 Model only

1шт.

13

5093704

FORK

1шт.

For Turn Buckle

1шт.
