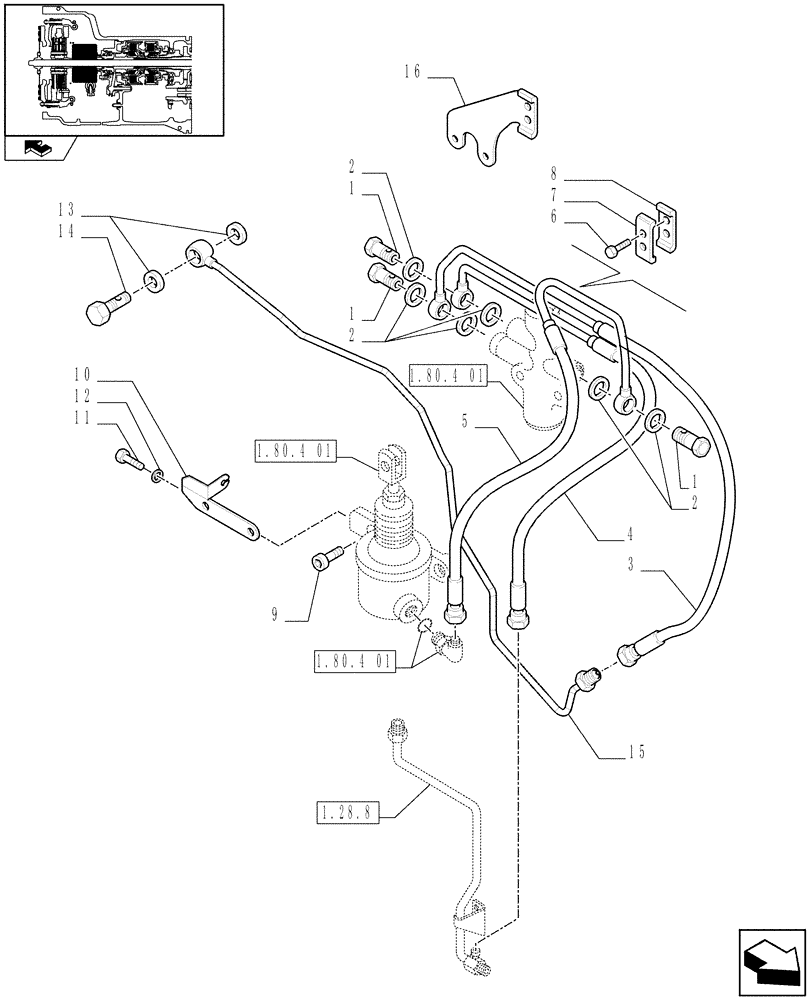

Запчасти Case IH FARMALL 80 (1.80.4[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO ENGAG.CLUTCH,SERVOCONT. (VAR.330120-331120) (07) - HYDRAULIC SYSTEM

1

10185011

BANJO BOLT,M12 x 1.25 x 23mm

3шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

D=12

6шт.

3

84318640

PIPE

Discharge, Serial Range: -C6881

1шт.

3

84481039

FLEXIBLE HOSE

Discharge, Start Serial: D6881

1шт.

4

84318651

PIPE

Inlet, Serial Range: -C6881

1шт.

4

84481040

FLEXIBLE HOSE

Inlet, Start Serial: D6881

1шт.

5

84318645

PIPE

Cyl., Serial Range: -C6881

1шт.

5

84481041

FLEXIBLE HOSE

Cyl., Start Serial: D6881

1шт.

6

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

2шт.

7

5184304

BRACKET

1шт.

8

5184084

RETAINER COLLAR,2x5mm ID x 40mm L

M5, Serial Range: -C6881

1шт.

9

14331121

HEX SOC SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

10

84328415

SUPPORT

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

12

11067276

SNAP RING,M24, Ext

1шт.

13

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

2шт.

14

4864083

BANJO BOLT,M14 x 1.5 x 30mm

1шт.

15

84341816

PIPE

Discharge, Serial Range: -C6876

1шт.

15

84411127

PIPE

Discharge, Start Serial: D6876

1шт.

16

84481042

SUPPORT

, Start Serial: D6881

1шт.
