(1.68.5/02) - STANDARD FRONT AXLE W/ FRONT BRAKES - LOGIC VALVE - D6858 (VAR.336324-743907-335540-743908-743552)

Запчасти Case IH FARMALL 80 (1.68.5/02) - STANDARD FRONT AXLE W/ FRONT BRAKES - LOGIC VALVE - D6858 (VAR.336324-743907-335540-743908-743552) (04) - FRONT AXLE & STEERING

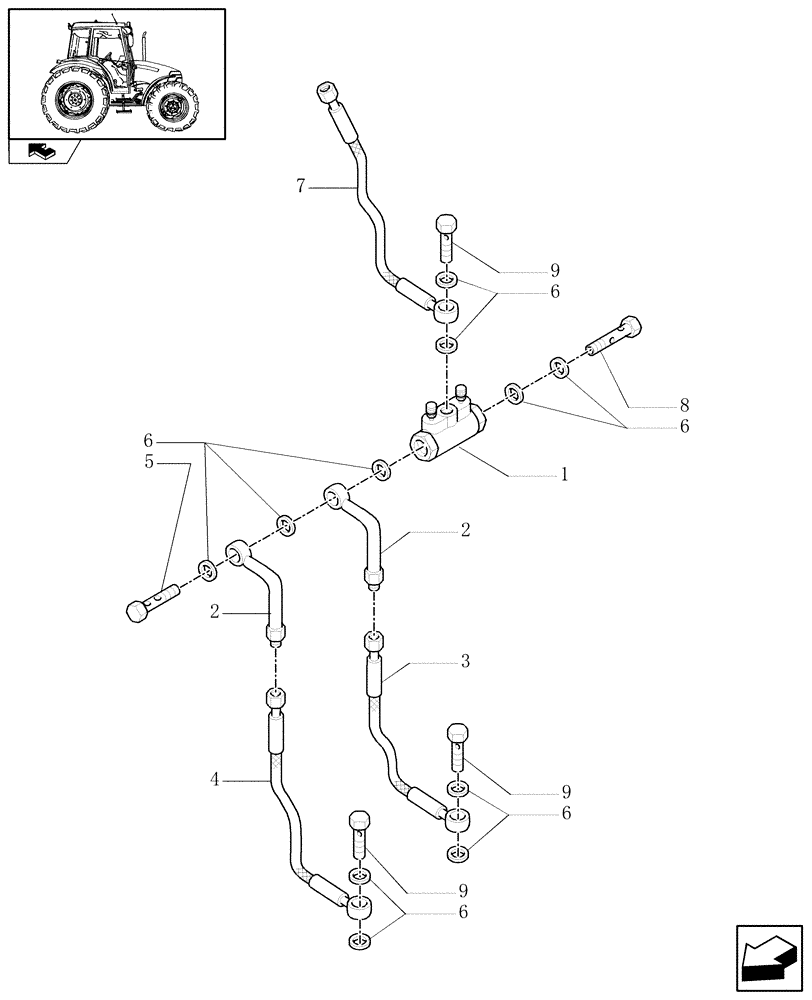

Схема запчастей Case IH FARMALL 80 - (1.68.5/02) - STANDARD FRONT AXLE W/ FRONT BRAKES - LOGIC VALVE - D6858 (VAR.336324-743907-335540-743908-743552) (04) - FRONT AXLE & STEERING
9
7
5
9
3
home
1
6
8
6
2
4
9
6
6
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5143506

MASTER CYLINDER

1шт.

2

87397067

BRAKE LINE

2шт.

3

84152484

FLEXIBLE HOSE

1шт.

4

87647085

HOSE,5.00 mm ID x 950.00 mm

1шт.

5

84175579

HYD CONNECTOR

1шт.

6

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

6шт.

7

87757128

FLEXIBLE HOSE

1шт.

8

47132432

HYD CONNECTOR

1шт.

9

5121685

BANJO BOLT,M12 x 1.5 x 23mm

3шт.
