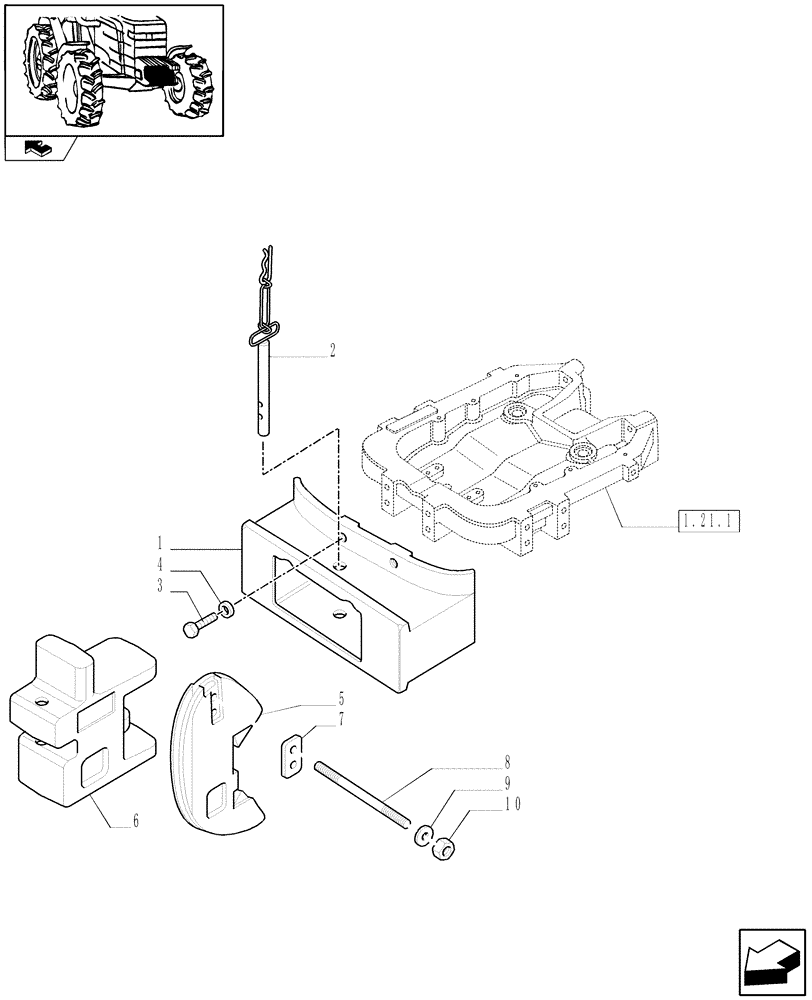

Запчасти Case IH FARMALL 80 (1.44.0/01) - FRONT SUPPORT AND WEIGHTS WITH HOOK (VAR.335240-335241-335242-335933) (04) - FRONT AXLE & STEERING

1

5091957

WEIGHT CARRIER

1шт.

2

87694283

PIN,31mm OD x 337mm L

2шт.

Front Carrier and Weights (2x45KG) with Hook 100KG - 278KG, VAR.335240

1шт.

Front Carrier and Weights (6x45KG) with Hook 100KG - 458KG, VAR.335241

1шт.

3

15981221

SCREW,Hex, M16 x 1.5 x 65mm, Cl 8.8

4шт.

4

11191579

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.

5

5091956

WEIGHT

45 KG

1шт.

Qty. 2 for VAR.335240; Qty. 6 for VAR335241; Qty. 7 for VAR.335242; Qty. 9 for VAR.335933

1шт.

6

5092096

WEIGHT

Front

1шт.

Front Carrier and Weights (2x45KG) with Hook 100KG - 278KG, VAR.335240

1шт.

Front Carrier and Weights (6x45KG) with Hook 100KG - 458KG, VAR.335241

1шт.

7

5092098

PLATE

2шт.

8

5092099

ROD

2шт.

Front Carrier and Weights (2x45KG) with Hook 100KG - 278KG, VAR.335240

1шт.

8

5092101

THREADED ROD

2шт.

Front Carrier and Weights (6x45KG) with Hook 100KG - 458KG, VAR.335241

1шт.

Front Carrier and Weights (9x45KG) with Hook - 493KG, VAR.335933

1шт.

8

5092345

THREADED ROD

2шт.

Front Carrier and Weights (7x45KG) with Hook - 403KG, VAR.335242

1шт.

9

5092100

SPACER,17.5mm ID x 34mm OD x 5mm L

4шт.

10

12164121

NUT,M16 x 1.5, Cl 10

4шт.
