(1.44.0) - FRONT COUNTERWEIGHT SUPPORT WITH HOOK - 88 KG (VAR.335397)

Запчасти Case IH FARMALL 80 (1.44.0) - FRONT COUNTERWEIGHT SUPPORT WITH HOOK - 88 KG (VAR.335397) (04) - FRONT AXLE & STEERING

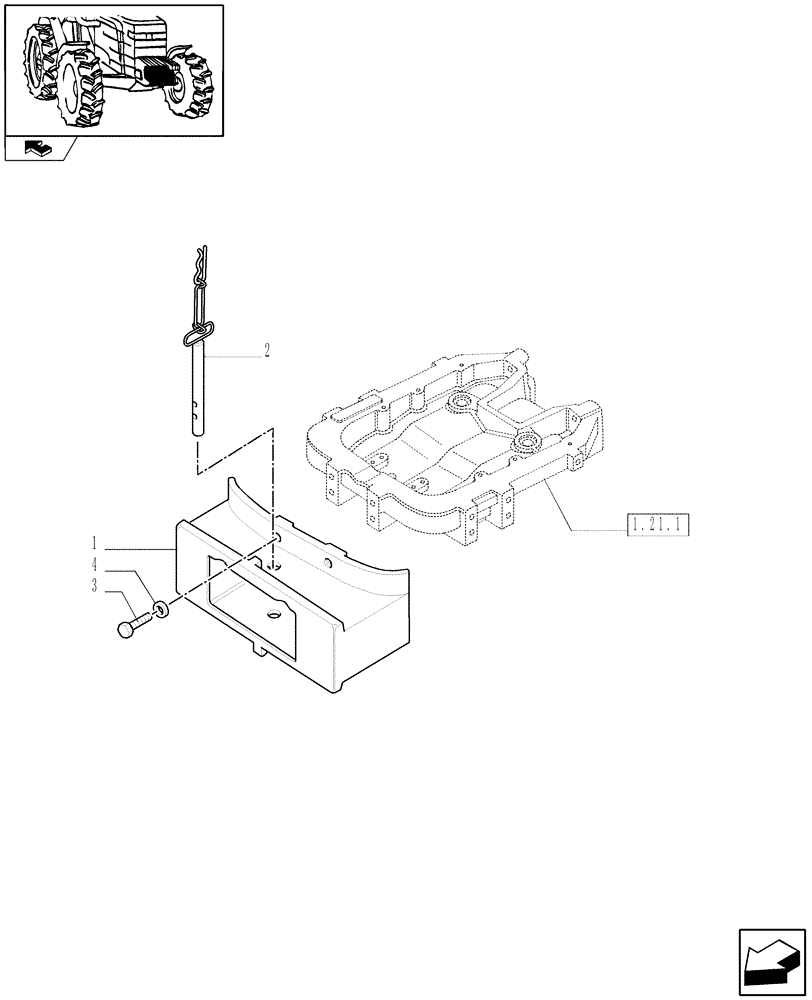

Схема запчастей Case IH FARMALL 80 - (1.44.0) - FRONT COUNTERWEIGHT SUPPORT WITH HOOK - 88 KG (VAR.335397) (04) - FRONT AXLE & STEERING
1.21.1
home
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091957

WEIGHT CARRIER

1шт.

2

87694283

PIN,31mm OD x 337mm L

1шт.

3

15981221

SCREW,Hex, M16 x 1.5 x 65mm, Cl 8.8

4шт.

4

11191579

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.
