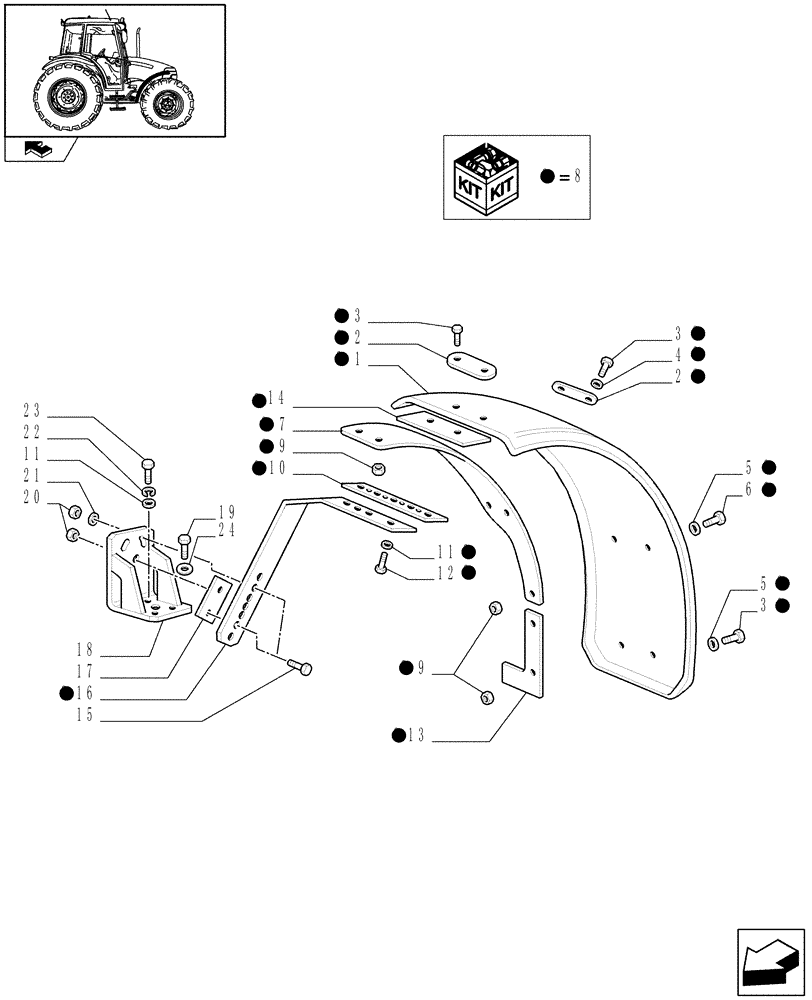

Запчасти Case IH FARMALL 80 (1.43.0/03) - 4WD WIDE FRONT FENDERS - 400 MM (VAR.335495) (04) - FRONT AXLE & STEERING

1

5122325

FRONT FENDER

400MM

1шт.

2

5148599

REINFORCEMENT

2шт.

3

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

5шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

5

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

2шт.

6

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

1шт.

7

5148596

PANEL

LH

1шт.

7

5148597

PANEL

RH

1шт.

8

5093268

FRONT FENDER

LH

1шт.

8

5093271

FRONT FENDER

RH

1шт.

9

12574521

LOCK NUT,M10 x 1.25, Cl 10

8шт.

10

5148598

PLATE

2шт.

11

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

13

5148600

REINFORCEMENT

LH

3шт.

13

5149441

REINFORCEMENT

RH

3шт.

14

5148601

PLATE

2шт.

15

11227024

BOLT,Hex, M14 x 1.5 x 65, 8.8

4шт.

16

5148594

SUPPORT

LH

1шт.

16

5148595

SUPPORT

RH

1шт.

17

5093172

SPACER

2шт.

18

5148602

SUPPORT

, Serial Range: -C6735

2шт.

18

84291524

SUPPORT

, Start Serial: D6735

2шт.

19

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

, Serial Range: -C6735

4шт.

20

12574815

LOCK NUT,M14 x 1.5, Cl 8

4шт.

21

10520104

WASHER,14.4mm ID x 26mm OD x 3mm Thk

4шт.

22

5116400

LOCK WASHER

12.5 x 35 x 5

2шт.

23

15540931

BOLT,Hex, M12 x 1.25 x 55mm, Cl 10.9

, Serial Range: -C6735

2шт.

23

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

, Start Serial: D6735

6шт.

24

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

D=13

4шт.
