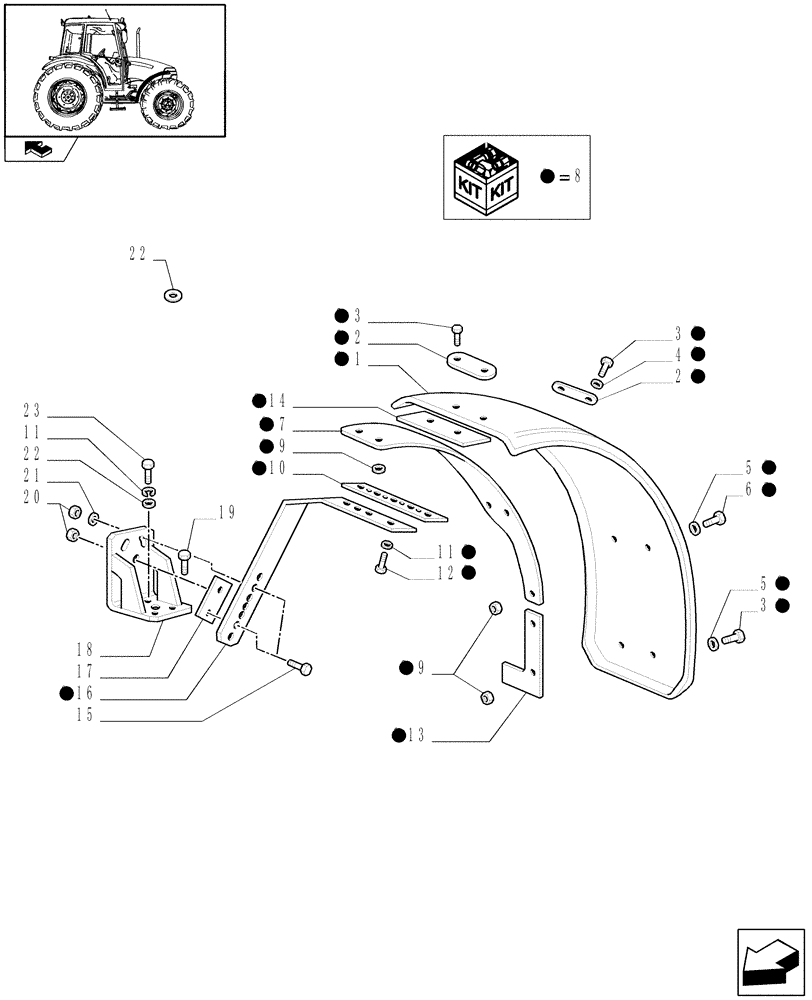

Запчасти Case IH FARMALL 80 (1.43.0/02) - 4WD FRONT MUDGUARDS - 340 MM (VAR.339860) (04) - FRONT AXLE & STEERING

1

5122261

FRONT FENDER

1шт.

2

5148599

REINFORCEMENT

2шт.

3

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

10шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

5

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

2шт.

6

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

7

5148596

PANEL

LH

1шт.

7

5148597

PANEL

RH

1шт.

8

5089277

FRONT FENDER

RH

1шт.

8

5090122

FRONT FENDER

LH

1шт.

9

12574511

LOCK NUT,M10 x 1.25, Cl 8

4шт.

10

5148598

PLATE

1шт.

11

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

8шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

13

5148600

REINFORCEMENT

RH

3шт.

13

5149441

REINFORCEMENT

LH

3шт.

14

15540931

BOLT,Hex, M12 x 1.25 x 55mm, Cl 10.9

2шт.

15

11227024

BOLT,Hex, M14 x 1.5 x 65, 8.8

4шт.

16

5148594

SUPPORT

LH

1шт.

16

5148595

SUPPORT

RH

1шт.

17

5116400

LOCK WASHER

12,5 x 35 x 5

2шт.

18

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

2шт.

19

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

4шт.

20

12574815

LOCK NUT,M14 x 1.5, Cl 8

4шт.

21

10520104

WASHER,14.4mm ID x 26mm OD x 3mm Thk

4шт.

22

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

4шт.
