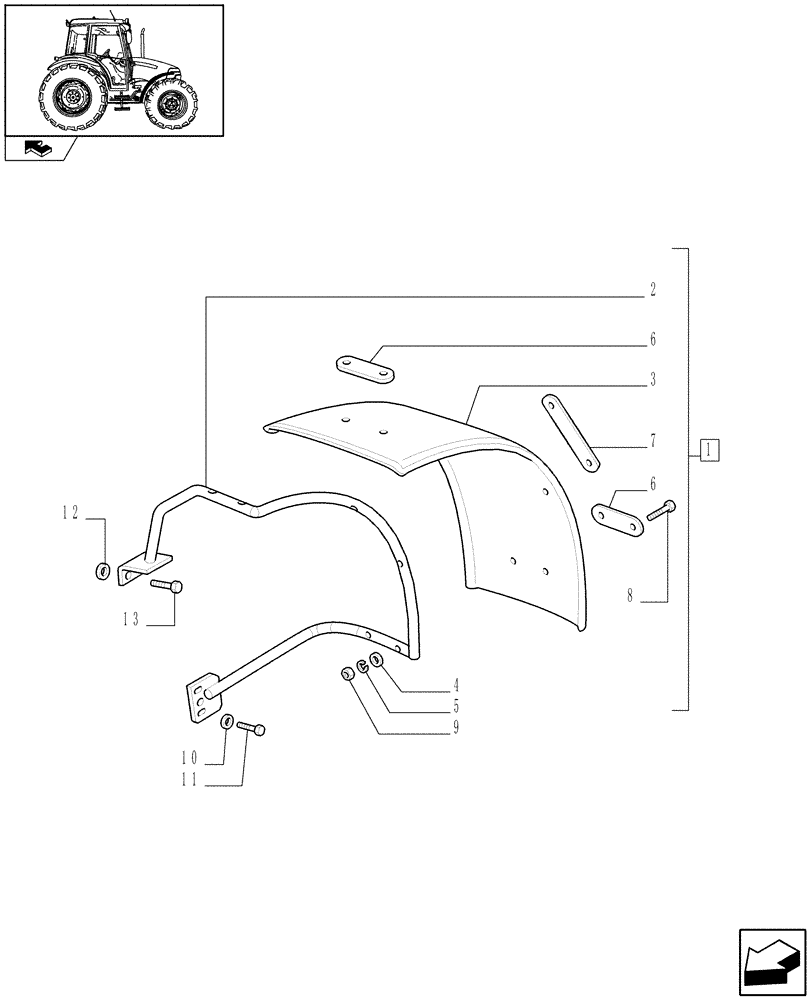

Запчасти Case IH FARMALL 80 (1.43.0) - 2WD FRONT MUDGUARDS - 240 MM. (VAR.338860) (04) - FRONT AXLE & STEERING

1

5125199

REAR FENDER

RH

1шт.

1

5125190

REAR FENDER

LH

1шт.

2

5125197

REAR FENDER

RH

1шт.

2

5125188

REAR FENDER

LH

1шт.

3

5125270

COVER ASSY

1шт.

4

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

5

12605574

WASHER

6шт.

6

5122259

REINFORCEMENT

2шт.

7

5122260

COVER PLATE

1шт.

8

13181301

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 45mm, Cl 4.6

6шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

6шт.

10

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

11

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

585876

WASHER,15mm ID x 30mm OD x 8mm Thk

2шт.

13

15977921

SCREW,Hex, M14 x 1.5 x 90mm, Cl 8.8

2шт.
