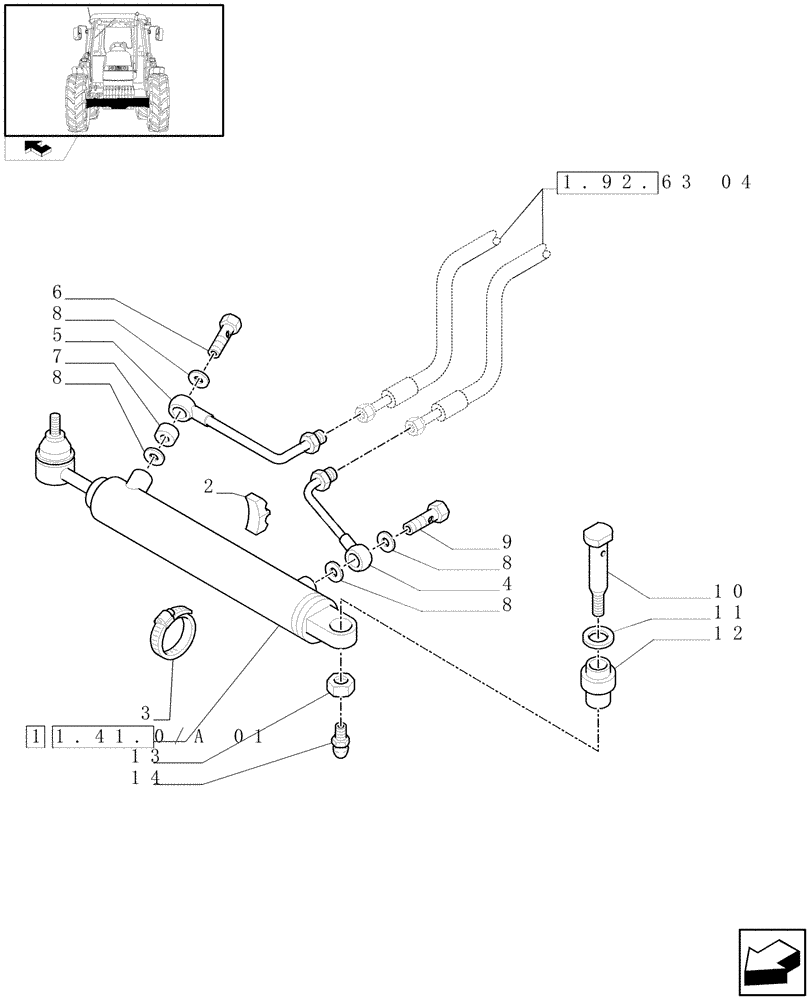

Запчасти Case IH FARMALL 80 (1.41.0[06]) - 2WD FRONT AXLE - STEERING CONTROL CYLINDER (04) - FRONT AXLE & STEERING

1

5098111

STEERING CYLINDER

ASSY

1шт.

1

5098112

STEERING CYLINDER,22mm Rod, 215mm Stroke

ASSY

1шт.

2

5121043

SPACER

1шт.

3

82012730

HOSE CLAMP,68mm - 85mm, Worm Gear

1шт.

4

87626501

PIPE

1шт.

5

87626499

PIPE

1шт.

6

4999610

BANJO BOLT

1шт.

7

4999561

SPACER

1шт.

8

10280060

SEAL,M14.2 x 20 x 1.5

5шт.

9

4864083

BANJO BOLT,M14 x 1.5 x 30mm

1шт.

10

5088920

PIN

1шт.

11

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

1шт.

12

5102972

BUSHING,20mm ID x 42mm OD x 41mm L

1шт.

13

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

1шт.
