(1.40.7/10) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL GEARS AND SHAFT (VAR.335325-743559)

Запчасти Case IH FARMALL 80 (1.40.7/10) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL GEARS AND SHAFT (VAR.335325-743559) (04) - FRONT AXLE & STEERING

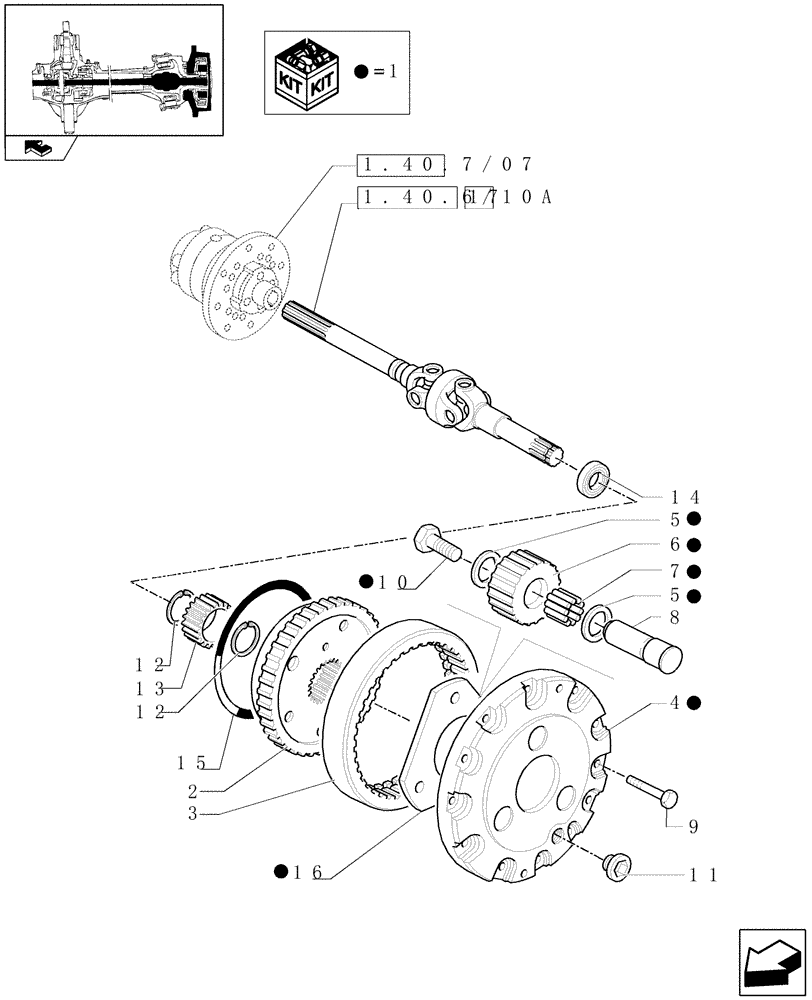

Схема запчастей Case IH FARMALL 80 - (1.40.7/10) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL GEARS AND SHAFT (VAR.335325-743559) (04) - FRONT AXLE & STEERING
14
3
15
13
11
1
1.40.7/07
17
5
1
16
1
2
5
1
1
12
1
7
1
9
1
4
10
12
1.40.6/10a
home
8
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87303291

CARRIER

ASSY

2шт.

2

5142047

PLANET CARRIER

2шт.

3

5108749

RING GEAR

2шт.

4

87312520

SUPPORT

1шт.

5

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

6шт.

6

87303252

PLANETARY GEAR

3шт.

7

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

3шт.

8

87304540

PIN,30.3mm OD x 68mm L

68MM

3шт.

9

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

10

14274431

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9

3шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

12

5140018

SNAP RING,M30, Ext

4шт.

13

5137107

SUN GEAR

2шт.

14

5133799

SEAL,42mm ID x 62mm OD x 17mm Thk

62 x 42 x 17

2шт.

15

4997571

CIRCLIP

2шт.

16

47137794

RING

1шт.

17

5164345

HALF SHAFT

ASSY, RH

1шт.

17

5164342

AXLE-SHAFT, ARTICULA

ASSY, LH

1шт.
