(1.40.7/07) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL - 4WD (VAR.335325-743559)

Запчасти Case IH FARMALL 80 (1.40.7/07) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL - 4WD (VAR.335325-743559) (04) - FRONT AXLE & STEERING

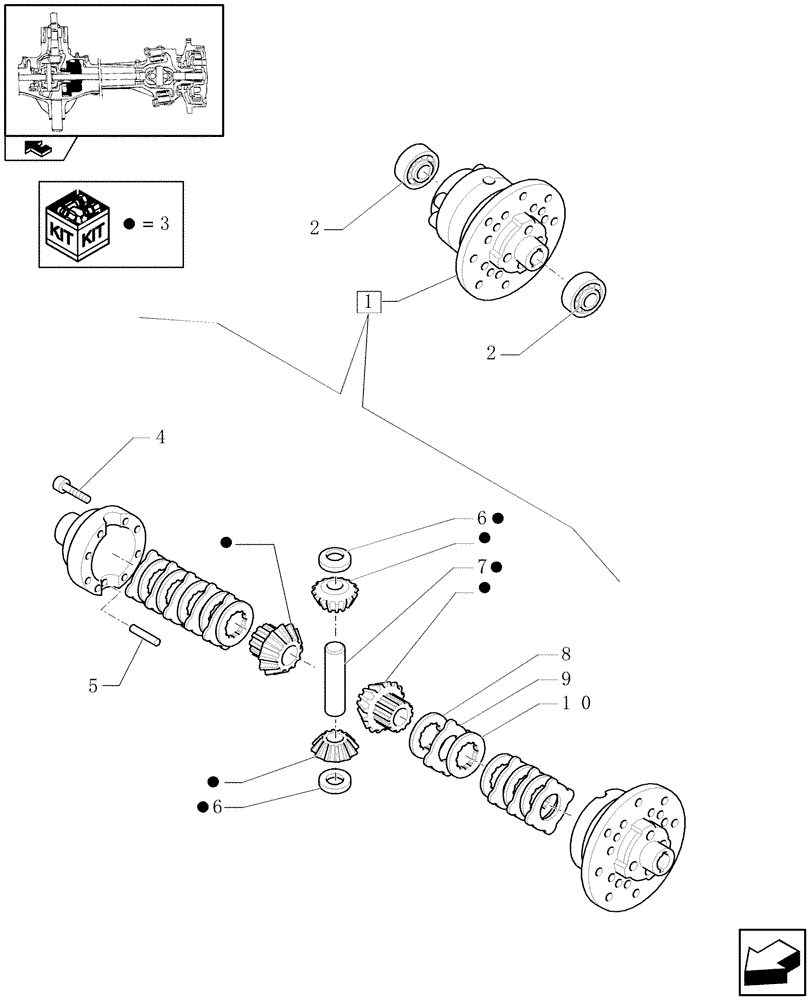

Схема запчастей Case IH FARMALL 80 - (1.40.7/07) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL - 4WD (VAR.335325-743559) (04) - FRONT AXLE & STEERING
8
3
10
9
4
3
3
3
3
3
6
6
3
3
5
2
1
2
home
3
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5162583

DIFFERENTIAL GEAR

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

3

1930983

KIT

1шт.

4

14421034

HEX SOC SCREW,M10 x 70mm, Cl 10.9

12шт.

5

9966356

ROLL PIN,7mm OD x 40mm L

1шт.

6

9966352

THRUST WASHER

2шт.

7

9966354

SHAFT

1шт.

8

9966308

PLATE

2шт.

9

9966309

DRIVEN PLATE

10шт.

10

9966310

PLATE

8шт.
