(1.40.6/10) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF, W/ FRONT BRAKES - DIFF.GEARS AND SHAFT (VAR.335324-336324-743907-743552)

Запчасти Case IH FARMALL 80 (1.40.6/10) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF, W/ FRONT BRAKES - DIFF.GEARS AND SHAFT (VAR.335324-336324-743907-743552) (04) - FRONT AXLE & STEERING

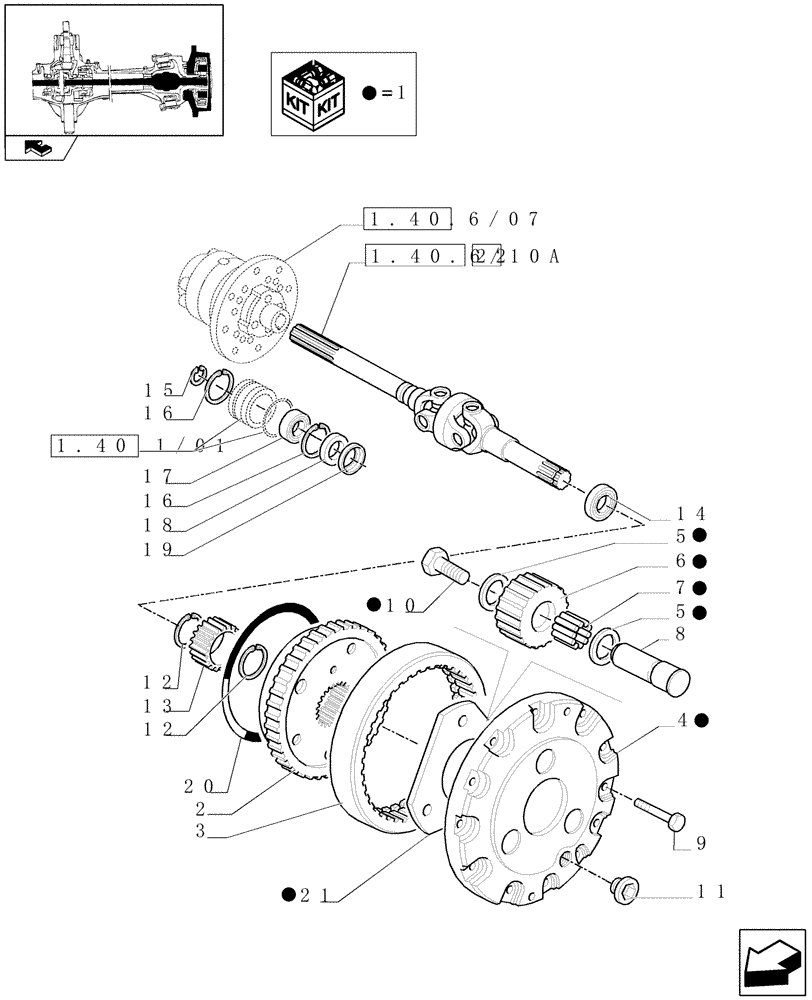

Схема запчастей Case IH FARMALL 80 - (1.40.6/10) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF, W/ FRONT BRAKES - DIFF.GEARS AND SHAFT (VAR.335324-336324-743907-743552) (04) - FRONT AXLE & STEERING
3
16
1
1
2
12
1
1
19
5
22
1.40.1/01
6
14
1.40.6/07
17
21
4
13
1
18
1
15
16
8
1
7
20
10
5
9
11
1
1.40.6/10a
home
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87303291

CARRIER

ASSY

2шт.

2

5142047

PLANET CARRIER

2шт.

3

5108749

RING GEAR

2шт.

4

87312520

SUPPORT

2шт.

5

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

6

87303252

PLANETARY GEAR

6шт.

7

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

8

87304540

PIN,30.3mm OD x 68mm L

68MM

6шт.

9

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

12

5140018

SNAP RING,M30, Ext

4шт.

13

5137107

SUN GEAR

2шт.

14

5133799

SEAL,42mm ID x 62mm OD x 17mm Thk

62 x 42 x 17

2шт.

15

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

16

370012

RING,M62, Internal

4шт.

17

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

35 x 62 x 14

2шт.

18

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

40 x 62 x 10

2шт.

19

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.

20

4997571

CIRCLIP

2шт.

21

47137794

RING

2шт.

22

5164345

HALF SHAFT

ASSY, RH

1шт.

22

5164342

AXLE-SHAFT, ARTICULA

ASSY, LH

1шт.
