(1.40.5/08[01]) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - POWER STEERING CYLINDER (VAR.335540-743908-743552)

Запчасти Case IH FARMALL 80 (1.40.5/08[01]) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - POWER STEERING CYLINDER (VAR.335540-743908-743552) (04) - FRONT AXLE & STEERING

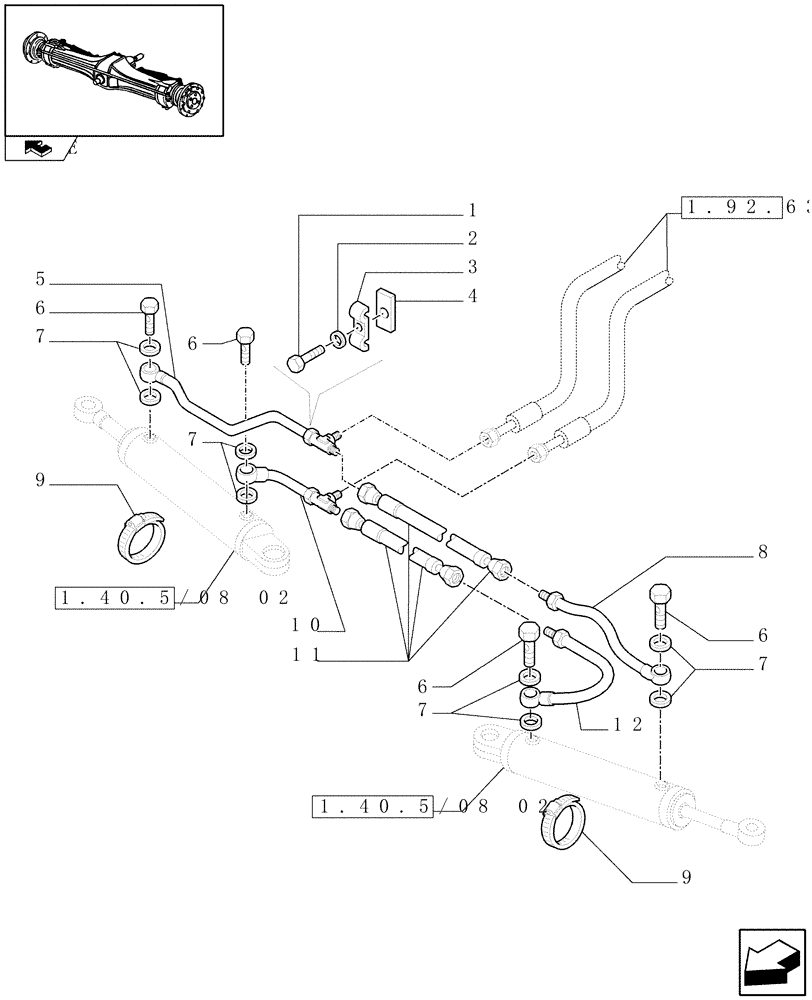

Схема запчастей Case IH FARMALL 80 - (1.40.5/08[01]) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - POWER STEERING CYLINDER (VAR.335540-743908-743552) (04) - FRONT AXLE & STEERING
6
8
7
4
7
9
3
home
1.92.63 04
1.40.5/08 02
1.40.5/08 02
7
2
9
1
12
10
6
6
5
7
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

3

4999554

CLAMP,2 Hoses

2шт.

4

5138294

SUPPORT

2шт.

5

5139049

HYD TUBE

RH

1шт.

6

4864083

BANJO BOLT,M14 x 1.5 x 30mm

4шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86 x 22.23 x 2

8шт.

8

5139046

HYD TUBE

LH

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.

10

5163740

TUBE

LH

1шт.

11

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

2шт.

12

5163738

HYD TUBE

RH

1шт.
