(1.40.5/04) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - TIE-ROD (VAR.335540)

Запчасти Case IH FARMALL 80 (1.40.5/04) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - TIE-ROD (VAR.335540) (04) - FRONT AXLE & STEERING

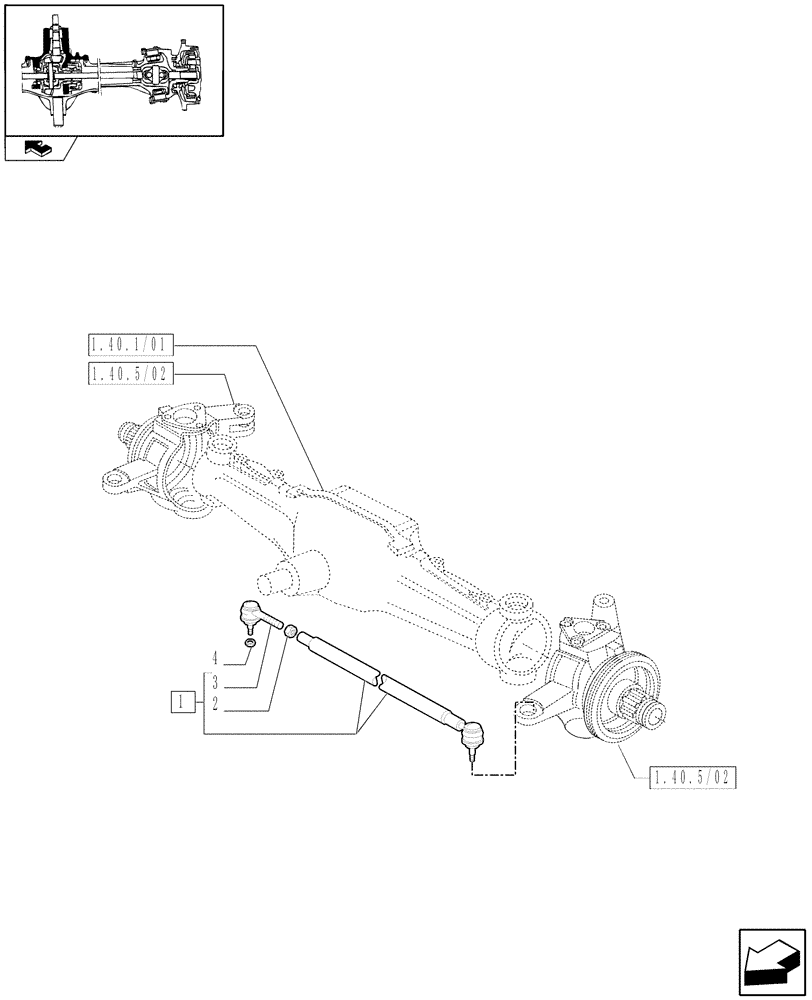

Схема запчастей Case IH FARMALL 80 - (1.40.5/04) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYL. (4OKM/H) - TIE-ROD (VAR.335540) (04) - FRONT AXLE & STEERING
3
1.40.5/02
1.40.5/02
1.40.1/01
1
2
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5143152

TRACK ROD ASSY,M20 x 1 x 1515mm L

1шт.

2

587302

LOCK NUT,Hex, M20 x 1

M20 x 1

1шт.

3

5109553

BALL JOINT

M16 and M20 Threads

1шт.

4

12575921

NUT,M16 x 1.5, Cl 05

2шт.

Выбрано товаров: 4
