Запчасти Case IH FARMALL 80 (1.40.4/01) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (3OKM/H) - BOX (VAR.335539-743906) (04) - FRONT AXLE & STEERING

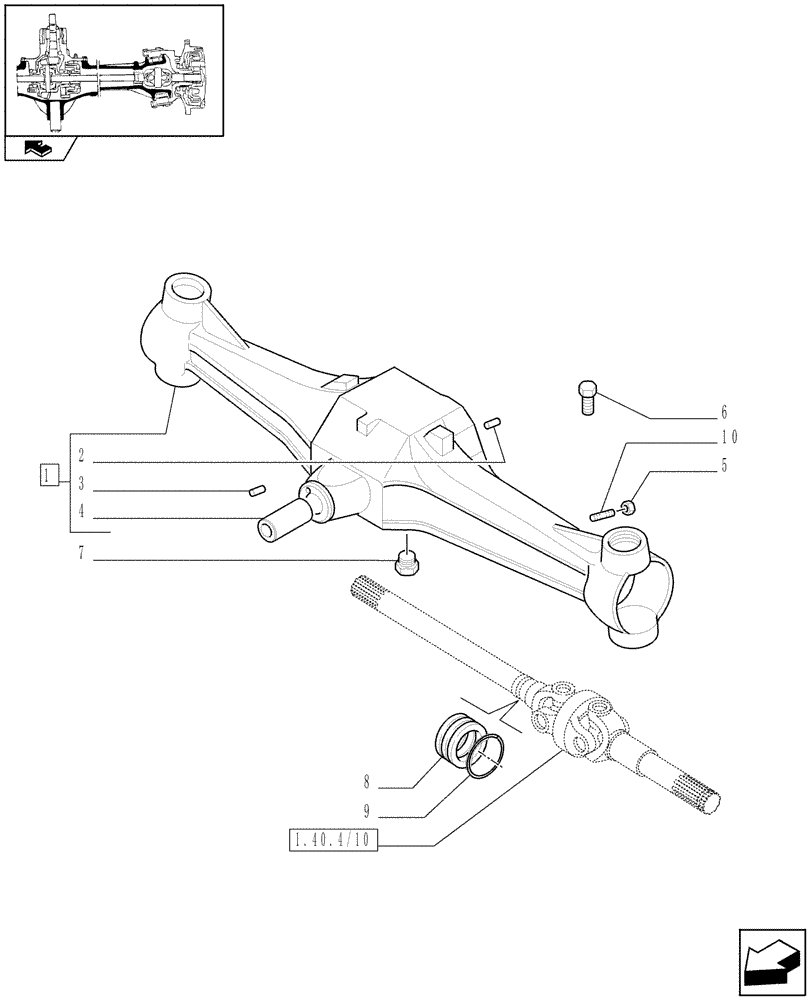

Схема запчастей Case IH FARMALL 80 - (1.40.4/01) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (3OKM/H) - BOX (VAR.335539-743906) (04) - FRONT AXLE & STEERING
8
6
1
3
7
2
1.40.4/10
9
10
home
5
4

Артикул

Название

Примечание

Количество

1

87309861

AXLE HOUSING

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

16101524

NUT,M12 x 1.25, Cl 10

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

14324413

PLUG,M22 x 1.5

1шт.

8

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

2шт.

9

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

2.62 x 80

2шт.

10

87309002

SET SCREW

M12 x 1.25 x 64

2шт.

Выбрано товаров: 10
