(1.40.2/07) - HEAVY DUTY REAR FINAL DRIVES (30KM/H) WITH FRONT LIMITED SLIP DIFF. LOCK - DIFFERENTIAL (VAR.335450)

Запчасти Case IH FARMALL 80 (1.40.2/07) - HEAVY DUTY REAR FINAL DRIVES (30KM/H) WITH FRONT LIMITED SLIP DIFF. LOCK - DIFFERENTIAL (VAR.335450) (04) - FRONT AXLE & STEERING

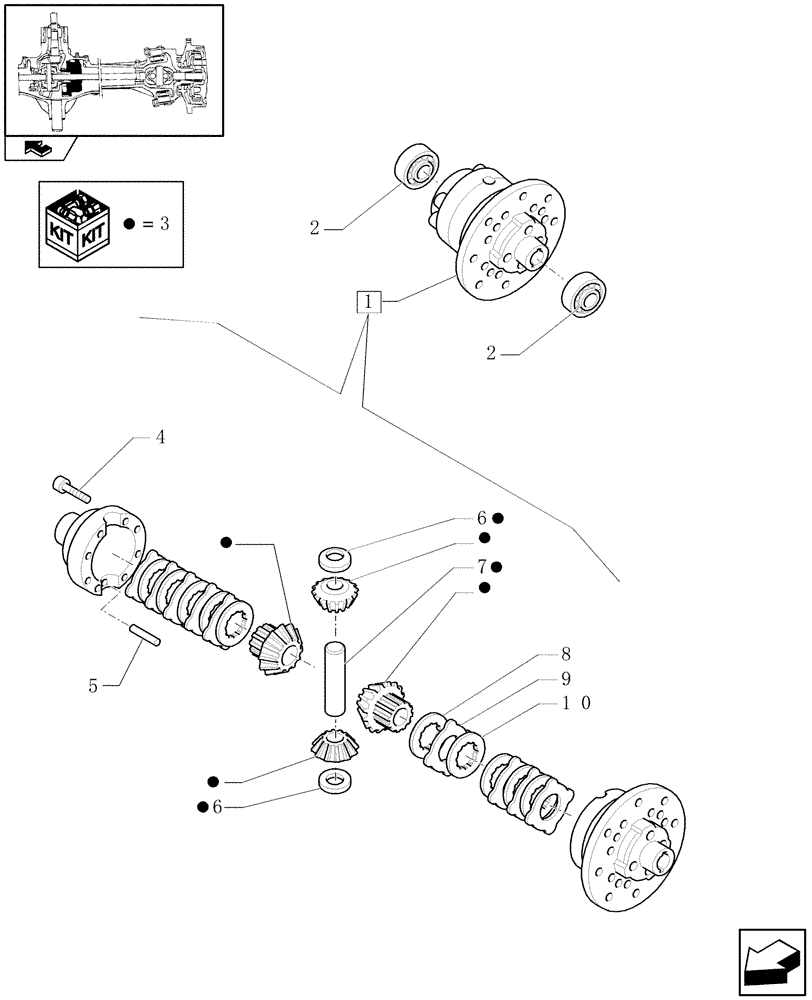

Схема запчастей Case IH FARMALL 80 - (1.40.2/07) - HEAVY DUTY REAR FINAL DRIVES (30KM/H) WITH FRONT LIMITED SLIP DIFF. LOCK - DIFFERENTIAL (VAR.335450) (04) - FRONT AXLE & STEERING
2
5
3
8
1
9
3
home
6
4
3
3
3
2
6
7
3
3
3
3
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5162583

DIFFERENTIAL GEAR

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

3

1930983

KIT

1шт.

4

14421034

HEX SOC SCREW,M10 x 70mm, Cl 10.9

12шт.

5

9966356

ROLL PIN,7mm OD x 40mm L

1шт.

6

9966352

THRUST WASHER

2шт.

7

9966354

SHAFT

1шт.

8

9966308

PLATE

2шт.

9

9966309

DRIVEN PLATE

10шт.

10

9966310

PLATE

8шт.
