(1.40.1/07[01]) - 4WD FRONT AXLE - DIFFERENTIAL

Запчасти Case IH FARMALL 80 (1.40.1/07[01]) - 4WD FRONT AXLE - DIFFERENTIAL (04) - FRONT AXLE & STEERING

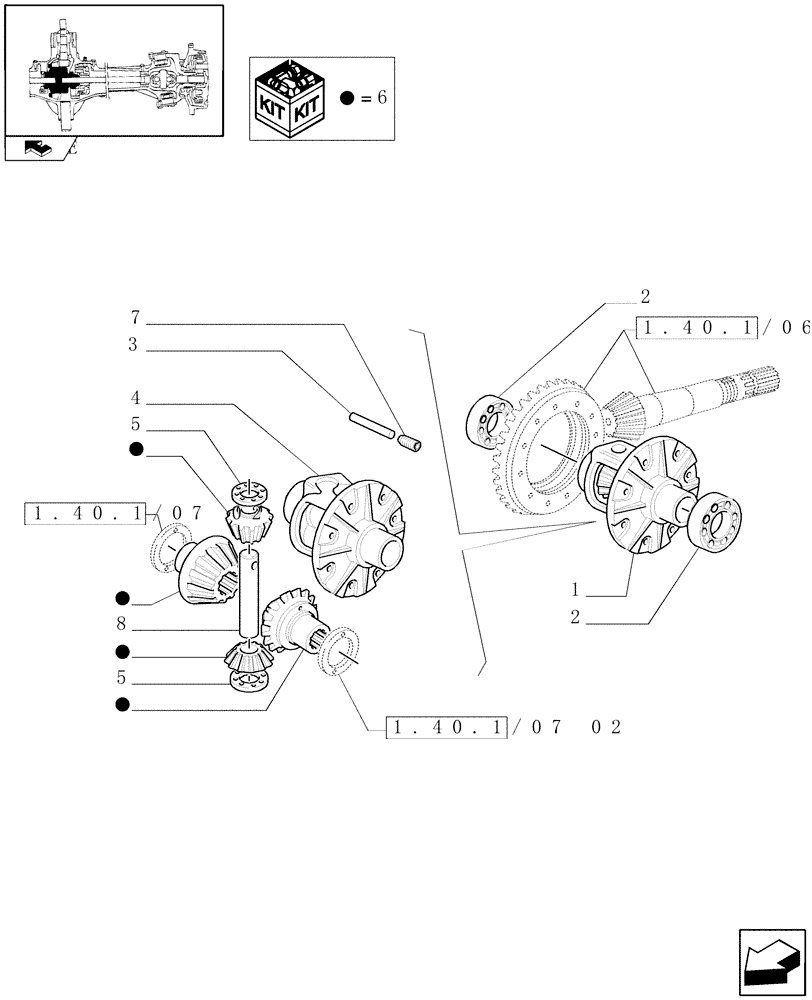

Схема запчастей Case IH FARMALL 80 - (1.40.1/07[01]) - 4WD FRONT AXLE - DIFFERENTIAL (04) - FRONT AXLE & STEERING
6
2
6
5
2
1
6
6
3
4
7
6
6
8
1.40.1/07 02
1.40.1/07 02
1.40.1/06 01
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5117219

HOUSING

ASSY

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

3

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5 x 6.5

1шт.

4

5174844

HOUSING

1шт.

5

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

6

1930125

KIT

1шт.

7

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

8

5148935

PIN,24mm OD x 144mm L

1шт.

Выбрано товаров: 8
