(1.38.5[02]) - 4WD PROPELLER SHAFT - GUARD

Запчасти Case IH FARMALL 80 (1.38.5[02]) - 4WD PROPELLER SHAFT - GUARD (04) - FRONT AXLE & STEERING

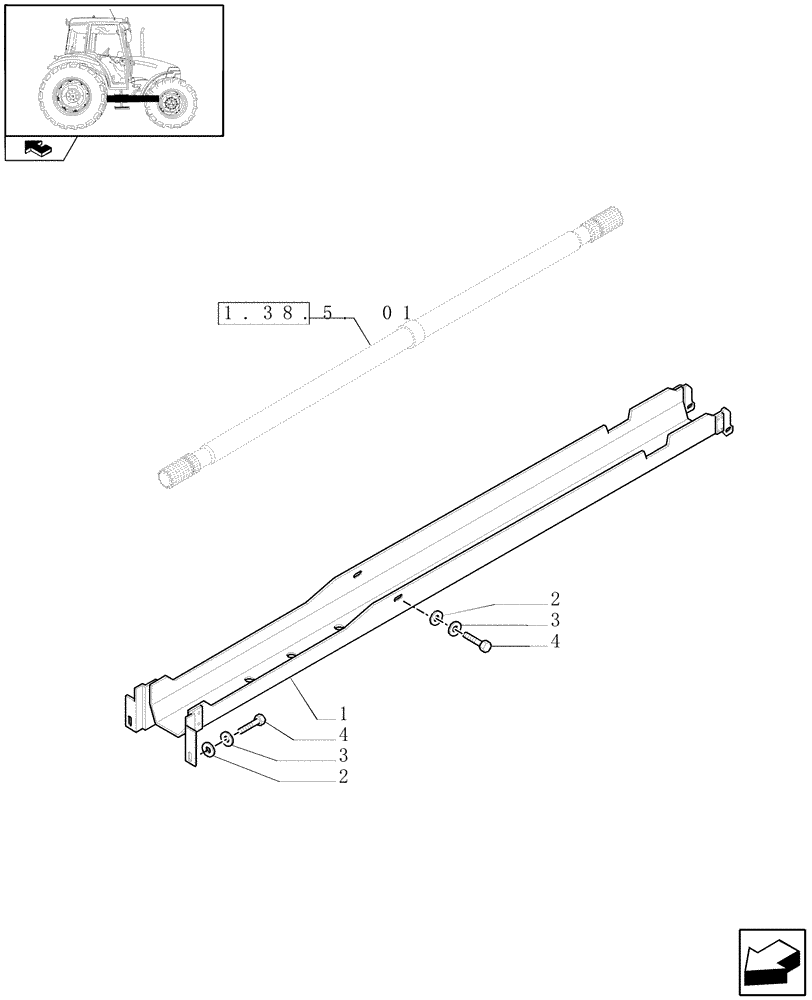

Схема запчастей Case IH FARMALL 80 - (1.38.5[02]) - 4WD PROPELLER SHAFT - GUARD (04) - FRONT AXLE & STEERING
1
3
home
2
4
2
1.38.5. 01
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87723464

GUARD

1шт.

Valid for 80 Model only

1шт.

1

87497609

GUARD

1шт.

Valid for 60 and 70 Models only

1шт.

1

84144590

GUARD

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD, Engagement; VAR.330384 (743909)

1шт.

Valid for 60 and 70 Models only

1шт.

1

84145459

GUARD

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD, Engagement; VAR.330384 (743909)

1шт.

Valid for 80 Model only

1шт.

2

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

3

10516674

LOCK WASHER,M8

6шт.

Valid for 80 Model only

1шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

6шт.

Valid for 60 and 70 Models only

1шт.

4

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.
