(1.34.2/03[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - REVERSER CONTROL (VAR.330120-331120)

Запчасти Case IH FARMALL 80 (1.34.2/03[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - REVERSER CONTROL (VAR.330120-331120) (04) - FRONT AXLE & STEERING

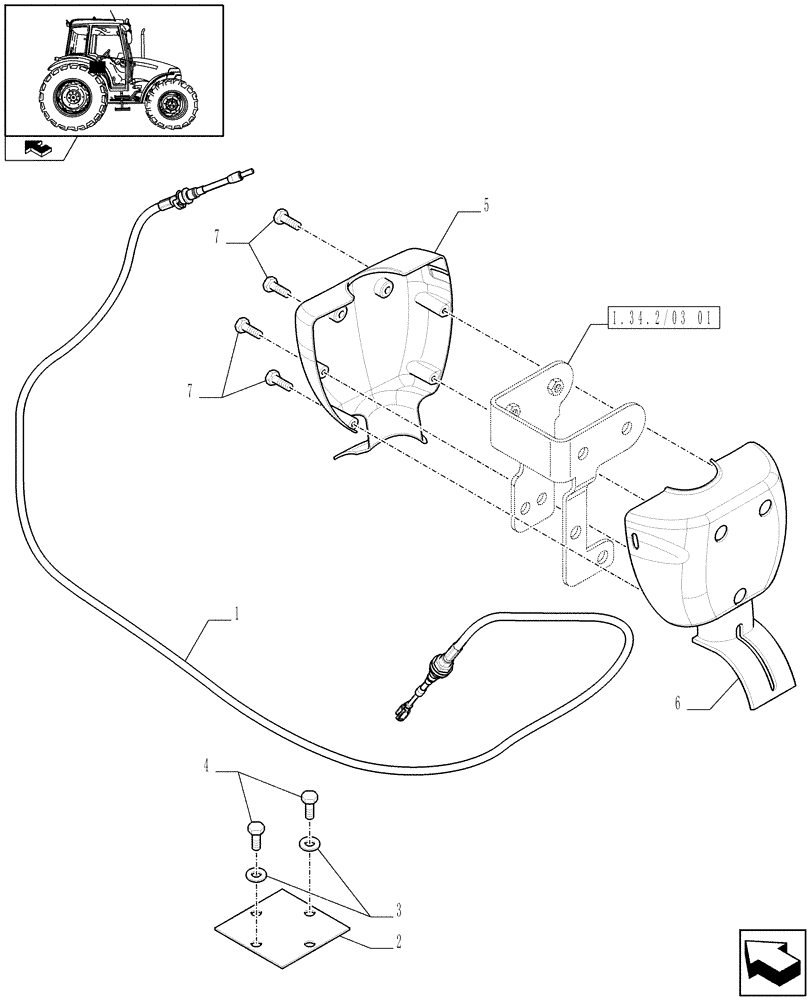

Схема запчастей Case IH FARMALL 80 - (1.34.2/03[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - REVERSER CONTROL (VAR.330120-331120) (04) - FRONT AXLE & STEERING
4
7
3
7
6
2
1.34.2/03 01
home
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84315134

CABLE,2670mm L

1шт.

2

5093838

PLATE

1шт.

3

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

5

84388726

COVER

1шт.

6

84388725

COVER

1шт.

7

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.
