(1.34.2/03[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - REVERSER CONTROL (VAR.330120-331120)

Запчасти Case IH FARMALL 80 (1.34.2/03[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - REVERSER CONTROL (VAR.330120-331120) (04) - FRONT AXLE & STEERING

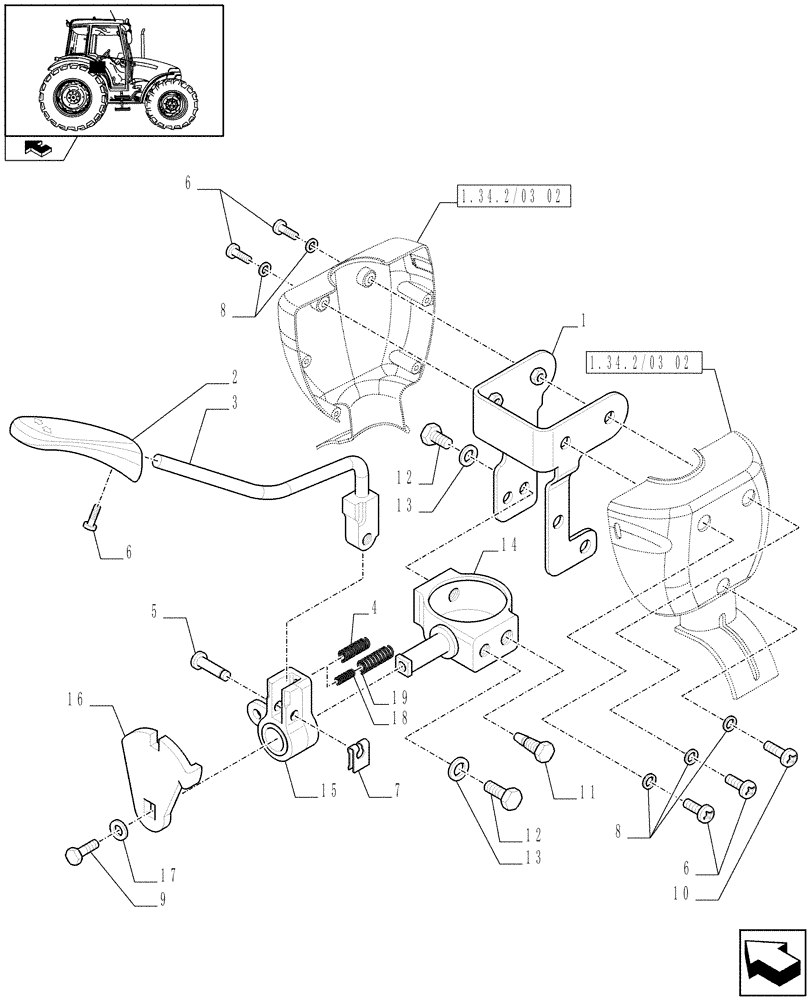

Схема запчастей Case IH FARMALL 80 - (1.34.2/03[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - REVERSER CONTROL (VAR.330120-331120) (04) - FRONT AXLE & STEERING
1.34.2/03 02
17
18
7
9
1
home
6
19
6
15
1.34.2/03 02
12
3
13
4
12
8
2
14
11
5
16
6
8
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84403915

SUPPORT

1шт.

2

84388721

KNOB

1шт.

3

84388719

LEVER

1шт.

4

84404372

SPRING

, Serial Range: -C6951

1шт.

5

84403899

PIN,6mm OD x 27.5mm L

1шт.

6

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

7

11063976

CLIP

1шт.

8

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

5шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

10

13279017

SCREW,Cross Pan Hd, M8 x 12

1шт.

11

84404370

BOLT,Hex, M10 x 1.25 x 19mm

1шт.

12

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

13

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

3шт.

14

84403896

SUPPORT

1шт.

15

84413984

LEVER

1шт.

16

84403895

PLATE

1шт.

17

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

18

84471834

SPRING

de 5.1MM, Start Serial: D6951

1шт.

19

84471833

SPRING

de 8MM, Start Serial: D6951

1шт.
