(1.33.2/01[01]) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - SOLENOID VALVE

Запчасти Case IH FARMALL 80 (1.33.2/01[01]) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - SOLENOID VALVE (04) - FRONT AXLE & STEERING

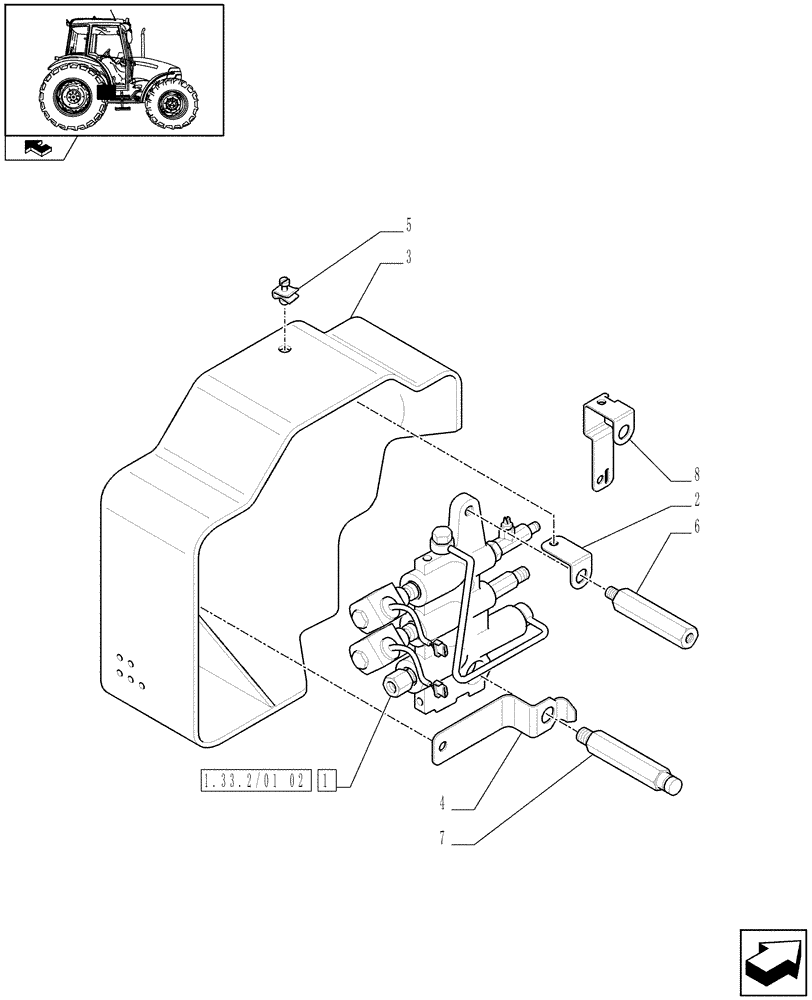

Схема запчастей Case IH FARMALL 80 - (1.33.2/01[01]) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - SOLENOID VALVE (04) - FRONT AXLE & STEERING
4
7
2
1.33.2/01 02
home
8
5
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84186980

CONTROL VALVE

1шт.

2

84298379

SUPPORT

1шт.

3

84198313

COVER

1шт.

3

84323590

COVER

1шт.

Power Shuttle e Servo PTO for Electro Hydraulic 4WD e Differential Look, VAR.331120

1шт.

4

84298371

SUPPORT

1шт.

4

84323575

SUPPORT

1шт.

Power Shuttle e Servo PTO for Electro Hydraulic 4WD e Differential Look, VAR.331120

1шт.

5

5174673

FASTENER,12mm OD

1шт.

6

84166437

TUBE SPACER

1шт.

7

84166438

TUBE SPACER

1шт.

8

84323574

SUPPORT

1шт.

Power Shuttle e Servo PTO for Electro Hydraulic 4WD e Differential Look, VAR.331120

1шт.
