Запчасти Case IH FARMALL 80 (1.33.1/01) - 4WD WATER PROOF TRANSMISSION - TRANSMISSION GEARINGS (VAR.330449) (04) - FRONT AXLE & STEERING

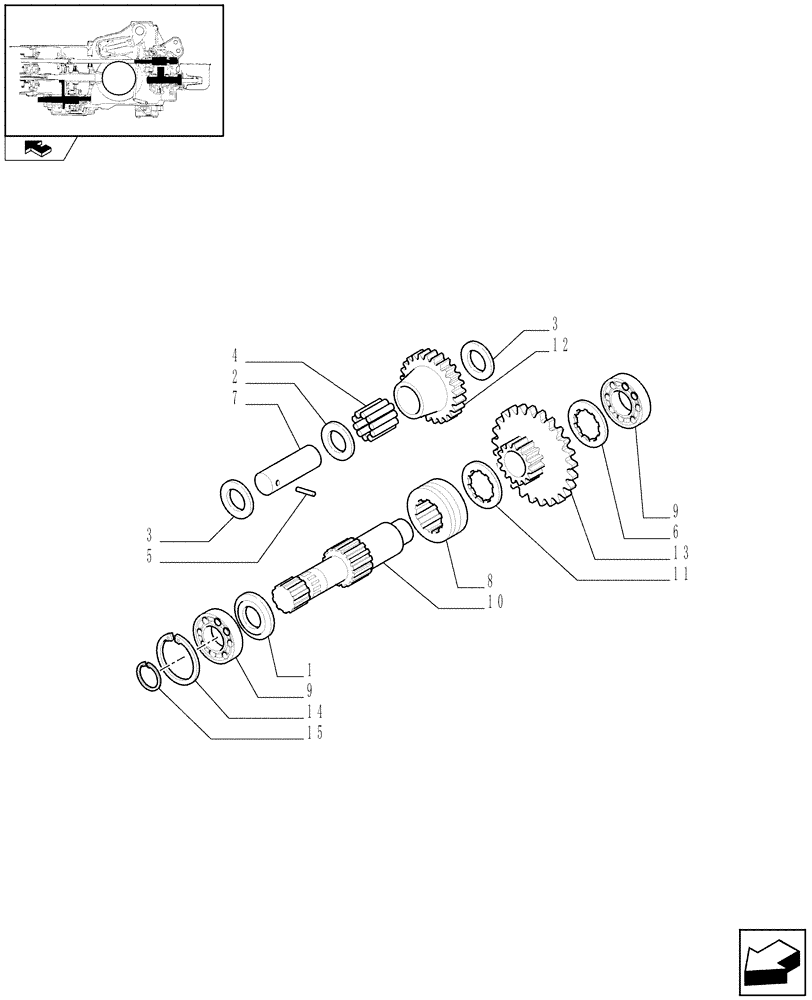

Схема запчастей Case IH FARMALL 80 - (1.33.1/01) - 4WD WATER PROOF TRANSMISSION - TRANSMISSION GEARINGS (VAR.330449) (04) - FRONT AXLE & STEERING
7
3
12
14
3
5
8
1
9
10
home
11
4
15
2
9
6
13

Артикул

Название

Примечание

Количество

1

584132

DISC,30.2mm ID x 60mm OD x 0.8mm Thk

1шт.

2

5123389

SPACER,28mm ID x 40.7mm OD x 8mm L

1шт.

3

5115930

THRUST WASHER,27mm ID x 51.5mm OD x 0.8mm Thk

2шт.

4

5115937

NEEDLE BEARING,26.8mm ID x 40.8mm OD x 41mm W

1шт.

5

13943070

ROLL PIN,M6 x 50, Coiled

1шт.

6

5121807

THRUST WASHER,36.5mm ID x 54mm OD x 3mm Thk

1шт.

7

5123387

PIN,26.8mm OD x 85mm L

1шт.

8

5123388

SLEEVE,37mm ID x 70mm OD x 32mm L

1шт.

9

46805

BALL BEARING,30mm ID x 72mm OD x 19mm W

1шт.

10

5123391

CONTROL SHAFT

1шт.

11

5124122

THRUST WASHER,36.5mm ID x 49mm OD x 3mm Thk

1шт.

12

5125011

IDLER GEAR

1шт.

13

5125012

IDLER GEAR

1шт.

14

11061576

SNAP RING,M72, Int

1шт.

15

11067776

SNAP RING,M29, Ext

1шт.

Выбрано товаров: 15
