(1.32.1/02[02]) - 12X12 (40KM/H) TRANS.W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - DRIVE SHAFT AND GEARS (STD, 743552-331321-743905)

Запчасти Case IH FARMALL 80 (1.32.1/02[02]) - 12X12 (40KM/H) TRANS.W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - DRIVE SHAFT AND GEARS (STD, 743552-331321-743905) (03) - TRANSMISSION

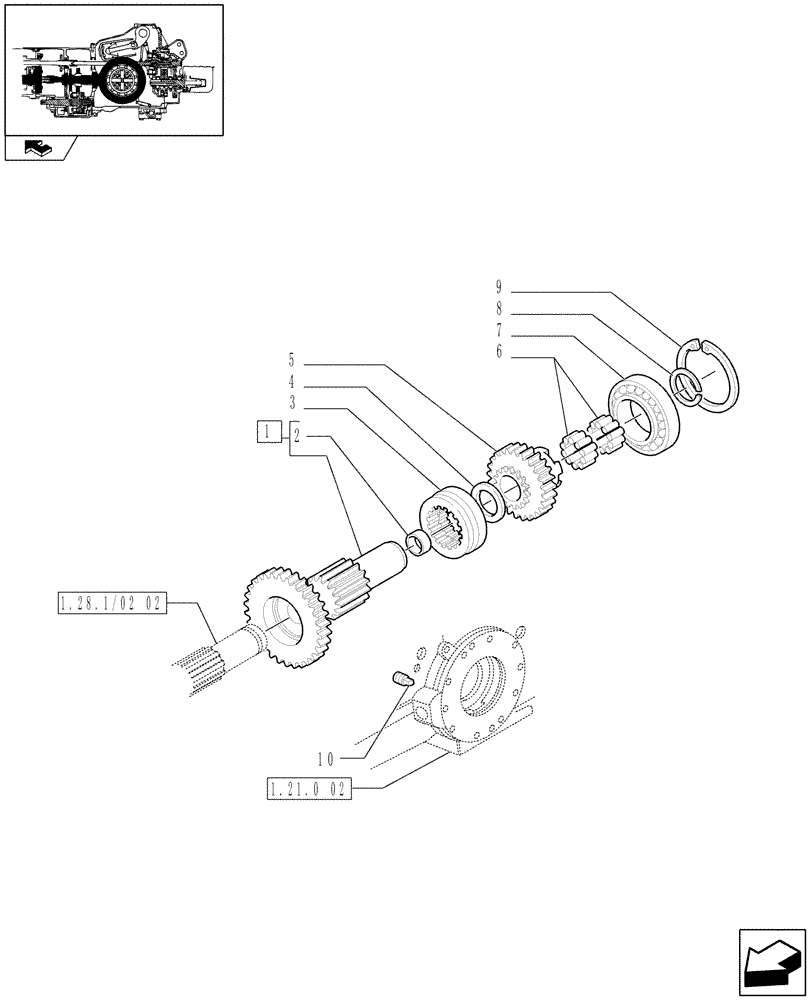

Схема запчастей Case IH FARMALL 80 - (1.32.1/02[02]) - 12X12 (40KM/H) TRANS.W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - DRIVE SHAFT AND GEARS (STD, 743552-331321-743905) (03) - TRANSMISSION
6
10
1
7
1.21.0 02
home
1.28.1/02 02
9
3
5
8
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5176751

MAIN SHAFT

Main

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25 x 28.53 x 18

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5131169

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

42 x 47 x 27

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22

1шт.

8

5117076

CIRCLIP,M47, Ext

D=47

1шт.

9

11075476

SNAP RING,M110, Int

1шт.

10

14323911

PLUG

M10 x 1.25

1шт.
