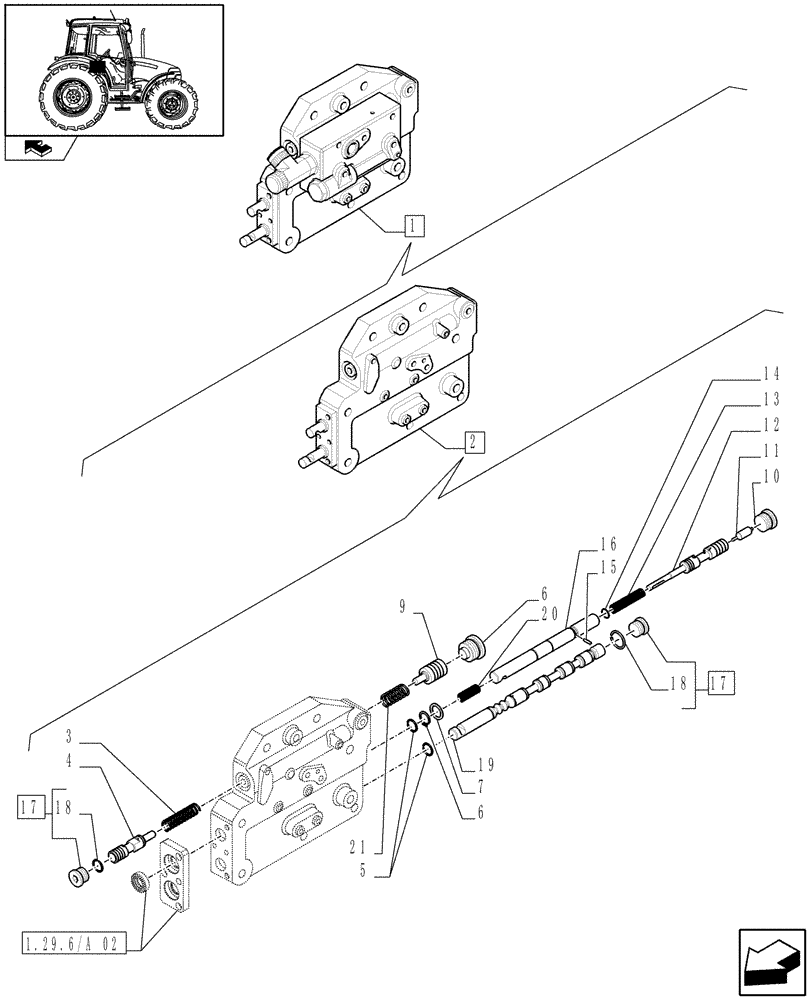

Запчасти Case IH FARMALL 80 (1.29.6/ A[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - BREAKDOWN (VAR.330120-331120) (03) - TRANSMISSION

1

84424271

CONTROL VALVE

ASSY, Contains Ref. 2

1шт.

2

84424313

CONTROL VALVE

ASSY, Contains Ref. 3-21

1шт.

See Breakdown in Group 1.29.6/A 02

1шт.

3

84289764

SPRING,20.22mm OD

1шт.

3

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

4

84289760

SPOOL

1шт.

4

84355420

PLUG

1шт.

5

84273379

SEAL

1шт.

5

13397776

SNAP RING,M16, Int

2шт.

6

84412053

PLUG

1шт.

7

300625

SNAP RING,M16, Ext

1шт.

7

14452881

O-RING,7.65mm ID x 1.78" Width

1шт.

8

84275592

RING,16.25mm ID x 22mm OD x 1.5mm Thk

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

84289759

PISTON

1шт.

10

86625138

PLUG,7/18" - 14

1шт.

11

84411956

PIN,10.98mm OD x 37mm L

1шт.

12

84413934

ROD

1шт.

13

84412795

SPRING

1шт.

14

84289763

CIRCLIP,12.25mm

1шт.

15

84289761

PIN,3.1mm x 11.5mm

1шт.

16

84412095

ROD

Inching

1шт.

17

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

ASSY, Contains Ref. 18

2шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

19

84380464

ROD

Forward/Reverse

1шт.

20

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

21

84351802

ROD

PTO Brake

1шт.

21

84414724

SPRING,13.18mm

1шт.
