Запчасти Case IH FARMALL 80 (1.28.8) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - GEAR LUBRICATION SYSTEM (VAR.330120-331120) (03) - TRANSMISSION

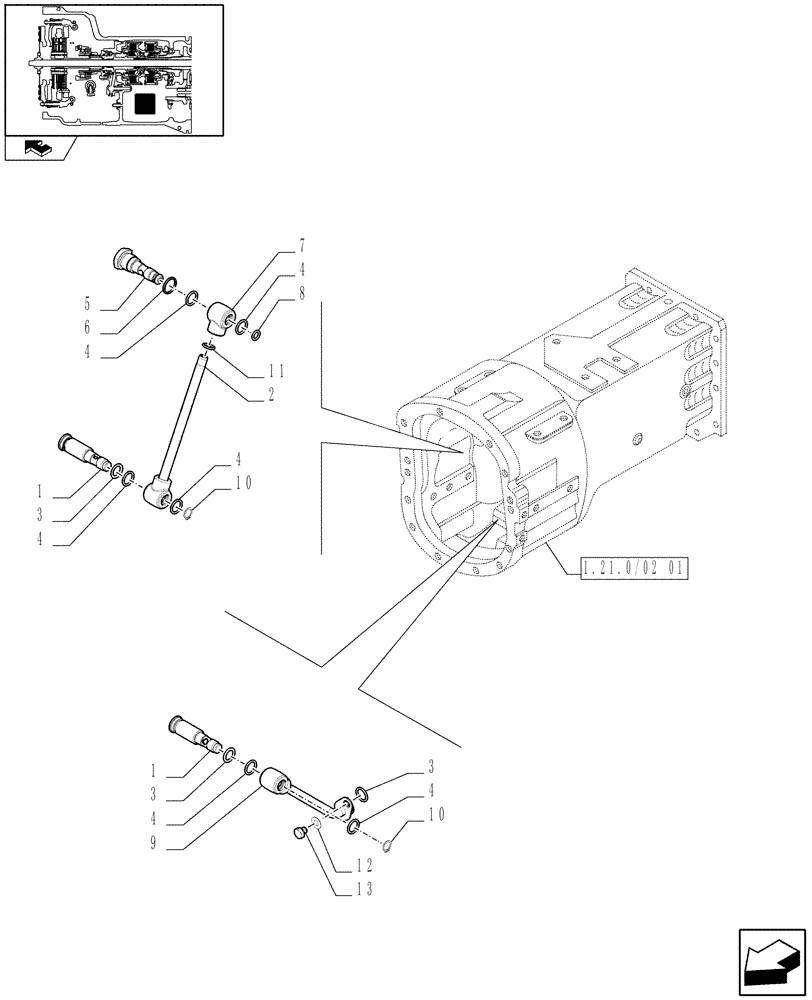

Схема запчастей Case IH FARMALL 80 - (1.28.8) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - GEAR LUBRICATION SYSTEM (VAR.330120-331120) (03) - TRANSMISSION
4
4
9
10
1
3
8
11
4
home
4
12
4
10
3
7
2
1
1.21.0/02 01
3
6
13
5
4

Артикул

Название

Примечание

Количество

1

84286479

PIPE

2шт.

2

84286490

PIPE

1шт.

3

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

4

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

6шт.

5

84286481

HYD CONNECTOR

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

5177779

HYD CONNECTOR,23mm ID x 28mm OD x 29mm Thk

1шт.

8

14456881

O-RING,0.362" ID x 0.103" Width

1шт.

9

84389435

PIPE

, Serial Range: -C6877

1шт.

9

84469287

PIPE

, Start Serial: D6877

1шт.

10

11066176

SNAP RING,M13, Ext

2шт.

11

5103230

O-RING,2.62mm Thk x 11.91mm ID

1шт.

12

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

13

15857624

SCREW,Hex, M8 x 8mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 14
