Запчасти Case IH FARMALL 80 (1.28.1/03[04]) - 12X12 (40KM/H) TRANSMISSION W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - SHAFTS AND GEARS (STD, 743552-331321-743905) (03) - TRANSMISSION

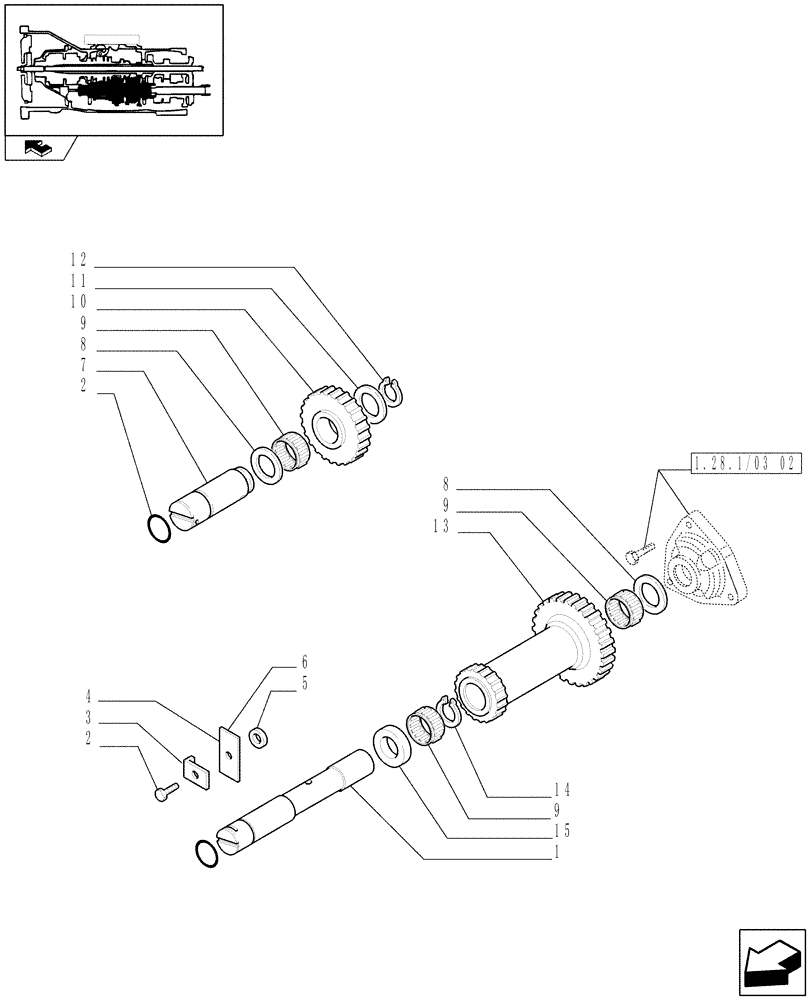

Схема запчастей Case IH FARMALL 80 - (1.28.1/03[04]) - 12X12 (40KM/H) TRANSMISSION W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP - SHAFTS AND GEARS (STD, 743552-331321-743905) (03) - TRANSMISSION
6
9
8
11
8
3
13
14
2
1
1.28.1/03 02
7
9
5
home
10
12
15
4
2
9

Артикул

Название

Примечание

Количество

1

5117557

PIN,32mm OD x 218mm L

1шт.

2

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

3

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

14198901

LOCKING PLATE,M12, Single Lock

1шт.

5

5117562

SPACER,12.5mm ID x 25mm OD x 6mm L

12.5x25x6

1шт.

6

5117561

PLATE

1шт.

7

5117567

PIN,32mm OD x 95mm L

1шт.

8

5117560

THRUST WASHER,32.01mm ID x 48mm OD x 4.5mm Thk

32x48x4.5

2шт.

9

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

32x38x26

3шт.

10

5160492

DRIVING GEAR

1шт.

11

5117570

THRUST WASHER,30mm ID x 48mm OD x 4.5mm Thk

32x48x4.5

1шт.

12

11068076

SNAP RING,M32, Ext

1шт.

13

5160495

IDLER GEAR

1шт.

14

5137228

CIRCLIP

1шт.

15

5117563

THRUST WASHER,32mm ID x 48mm OD x 14.5mm Thk

1шт.

Выбрано товаров: 15
