(1.21.0/02[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - TRACTOR BODY (VAR.330120-331120)

Запчасти Case IH FARMALL 80 (1.21.0/02[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - TRACTOR BODY (VAR.330120-331120) (03) - TRANSMISSION

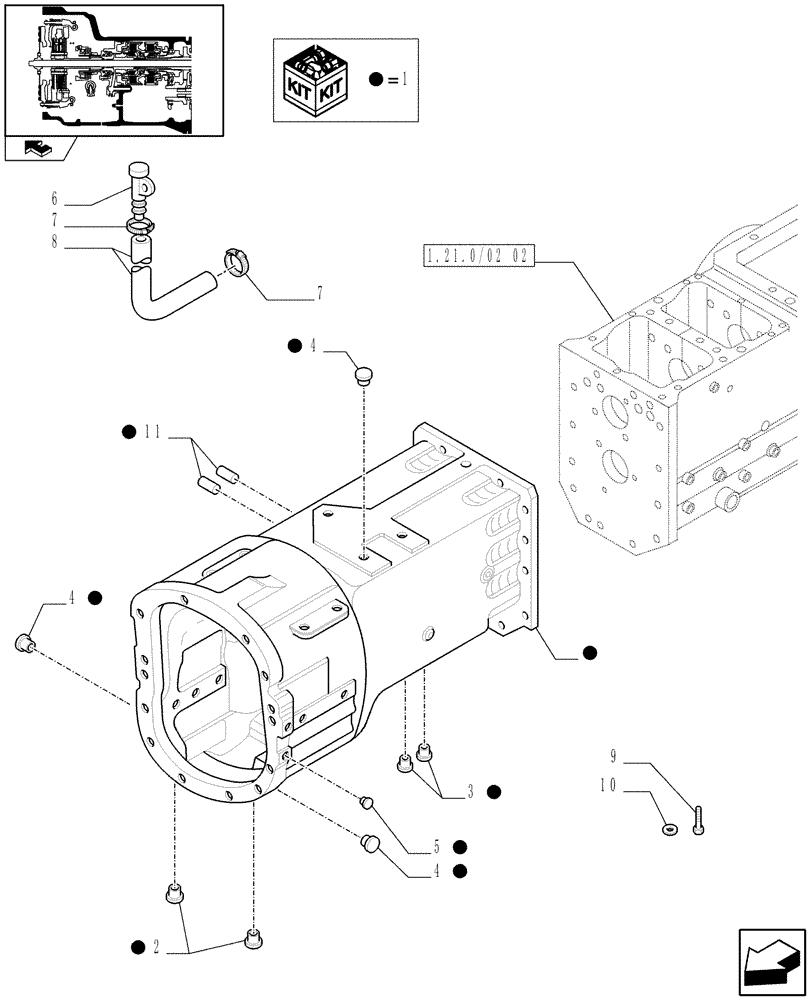

Схема запчастей Case IH FARMALL 80 - (1.21.0/02[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - TRACTOR BODY (VAR.330120-331120) (03) - TRANSMISSION
3
4
1
7
1
9
1
8
6
5
1
1.21.0/02 02
home
2
1
4
7
10
1
1
11
1
1
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84286478

HOUSING

1шт.

2

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

D=10.8-11

2шт.

3

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

4

590353

PLUG,15mm OD x 10mm High, Plastic

D=14.8-15

3шт.

5

87529026

PLUG

6шт.

6

5153270

BREATHER

1шт.

7

5085797

CLAMP

2шт.

8

84236795

HOSE

1шт.

9

15540634

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

10шт.

10

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

12шт.

11

14327401

PLUG,M13, Tapered

2шт.
