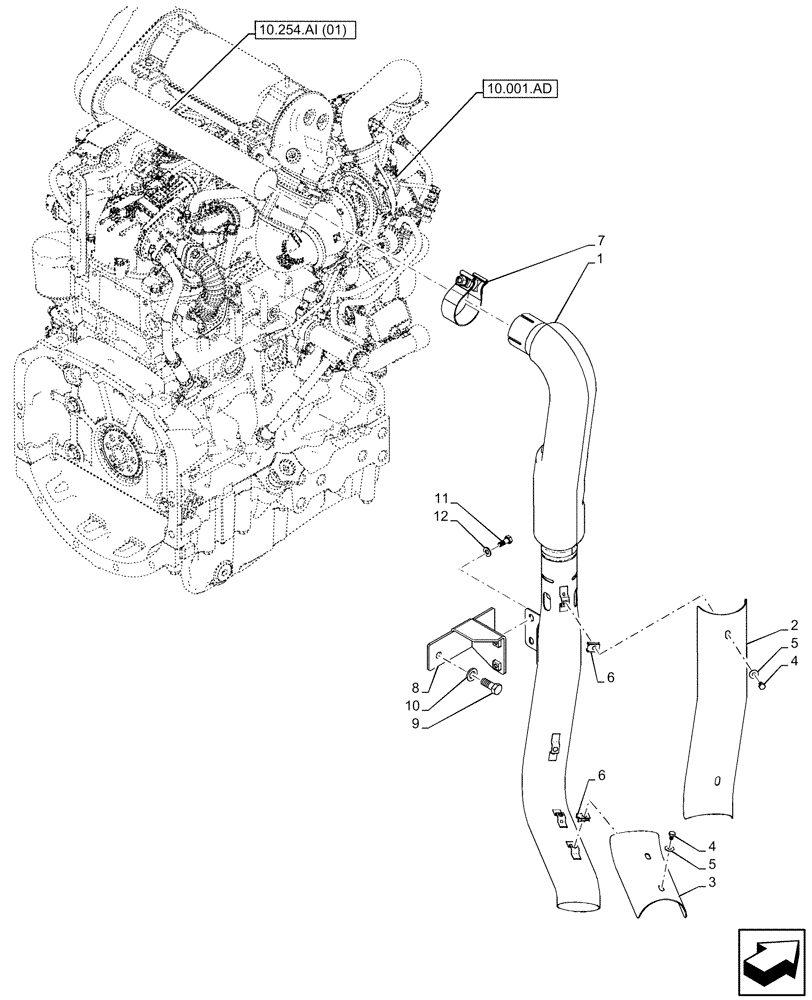

Запчасти Case IH FARMALL 75C (10.254.AD[02]) - VAR - 330150, 743544 - EXHAUST SYSTEM PIPE, HORIZONTAL (10) - ENGINE

1

47556947

UNLOADING TUBE

1шт.

2

47556971

HEAT SHIELD

1шт.

3

47556981

HEAT SHIELD

1шт.

4

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

5

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

4шт.

6

14189071

SPRING NUT,M6

M6

4шт.

7

84499086

CLAMP,64.9mm

1шт.

8

47592593

BRACKET

1шт.

9

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

2шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
