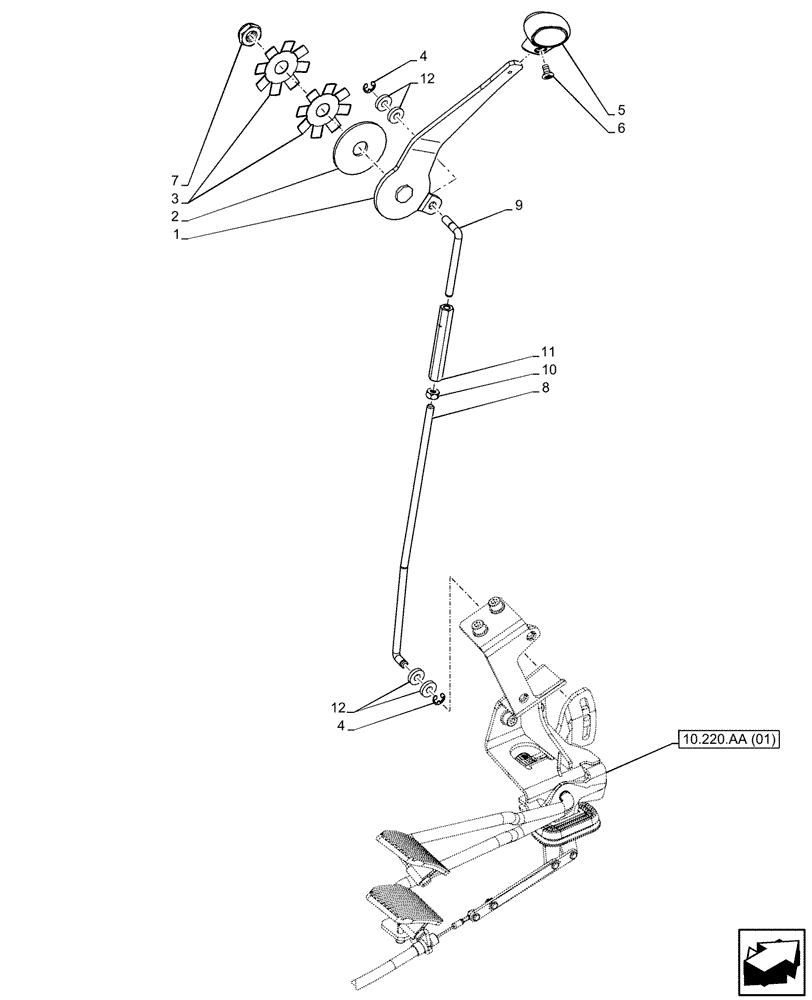

Запчасти Case IH FARMALL 75C (10.220.AA[02]) - VAR - 334187, 334190, 392315 - THROTTLE CONTROL, HAND, W/O CAB (10) - ENGINE

1

84340136

CONTROL LEVER

1шт.

2

83924272

FRICTION WASHER,14mm ID x 50mm OD x 3mm Thk

14mm ID x 50mm OD

1шт.

3

87347331

WASHER,12.83mm ID x 52.3mm OD x 0.89mm Thk

12.83mm ID

2шт.

4

11087776

CIRCLIP,Ext., M6, BLO

2шт.

5

82034589

KNOB

Throttle Control

1шт.

6

13308714

SCREW,Pozidriv Oval Hd, Csk, M4 x 8mm, Cl 5.8, Full Thd

1шт.

7

16105011

NUT,Hex, M12 x 1.25, Cl 8

M12 X 1.25mm, HEX

1шт.

8

84309189

THREADED TIE-ROD

1шт.

9

84309184

THREADED TIE-ROD

1шт.

10

15896211

NUT,M6, Cl 8

1шт.

11

10091011

TURNBUCKLE,Adjusting, M6 x 1 x 70mm

1шт.

12

84401275

RUBBER WASHER,7mm ID x 15mm OD x 1.5mm Thk

7mm ID x 15mm OD x 1.5mm Thk

4шт.
