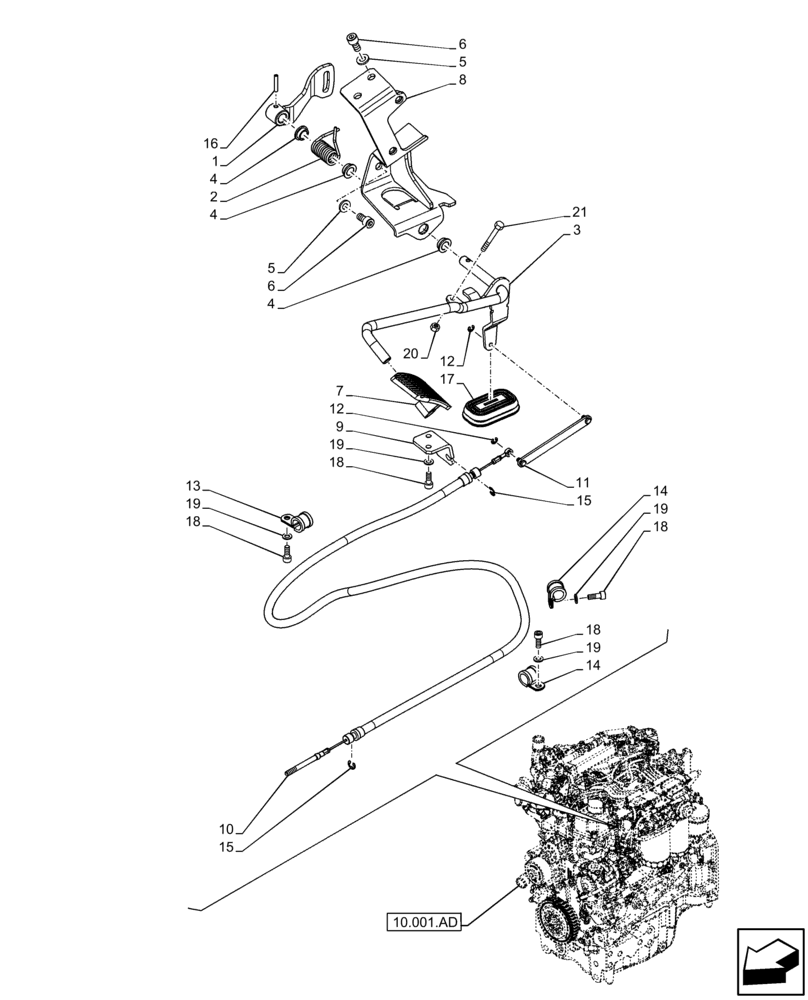

Запчасти Case IH FARMALL 75C (10.220.AA[01]) - VAR - 334187, 334190, 392315 - THROTTLE CONTROL, PEDAL, W/O CAB (10) - ENGINE

1

84309266

BRACKET

1шт.

2

84309281

SPRING

20mm x 34mm

1шт.

3

84309278

PEDAL

Throttle Control

1шт.

4

84309280

BUSHING,12mm ID x 14mm OD x 5mm L

12mm ID x 14mm OD x 5mm Thk

4шт.

5

11193871

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

14306224

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

7

84250071

PEDAL

Throttle Control

1шт.

8

84309295

BRACKET

1шт.

9

84341834

BRACKET

1шт.

10

84309310

FLEXIBLE CABLE

1645mm

1шт.

11

84323202

LEVER

1шт.

12

800-435

CIRCLIP,M5

2шт.

13

84347109

CLAMP,14mm ID, 7mm Bolt Hole, P Type

1шт.

14

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

14mm

2шт.

15

11087876

CIRCLIP,M7

2шт.

16

13940370

ROLL PIN,M5 x 26, Coiled

1шт.

17

84350520

GROMMET

1шт.

18

14305231

HEX SOC SCREW,M6 x 16mm, Cl 10.9, Full Thd

5шт.

19

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

5шт.

20

825-12408

NUT,M8 x 1.25, Cl 10, LH

1шт.

21

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
