(10.216.BA) - VAR - 332136, 390210, 743543, 744574 - FUEL TANK, LINES

Запчасти Case IH FARMALL 75C (10.216.BA) - VAR - 332136, 390210, 743543, 744574 - FUEL TANK, LINES (10) - ENGINE

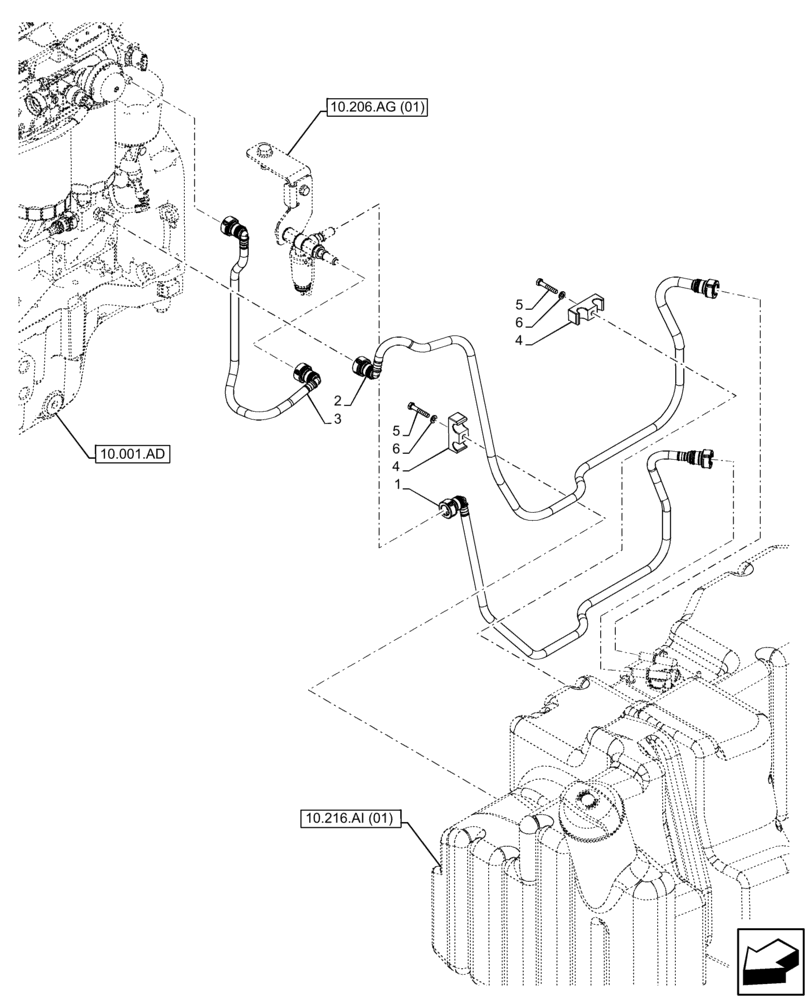

Схема запчастей Case IH FARMALL 75C - (10.216.BA) - VAR - 332136, 390210, 743543, 744574 - FUEL TANK, LINES (10) - ENGINE
10.001.ad
4
4
1
6
6
5
3
10.206.ag (01)
2
5
10.216.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47455211

FUEL TUBE

From Fuel Tank to Fuel Filter

1шт.

2

47455190

FUEL TUBE

From Engine to Fuel Tank

1шт.

3

47425242

FUEL TUBE

From Fuel Filter to Engine

1шт.

4

87745377

BRACKET

2шт.

5

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

Выбрано товаров: 6
