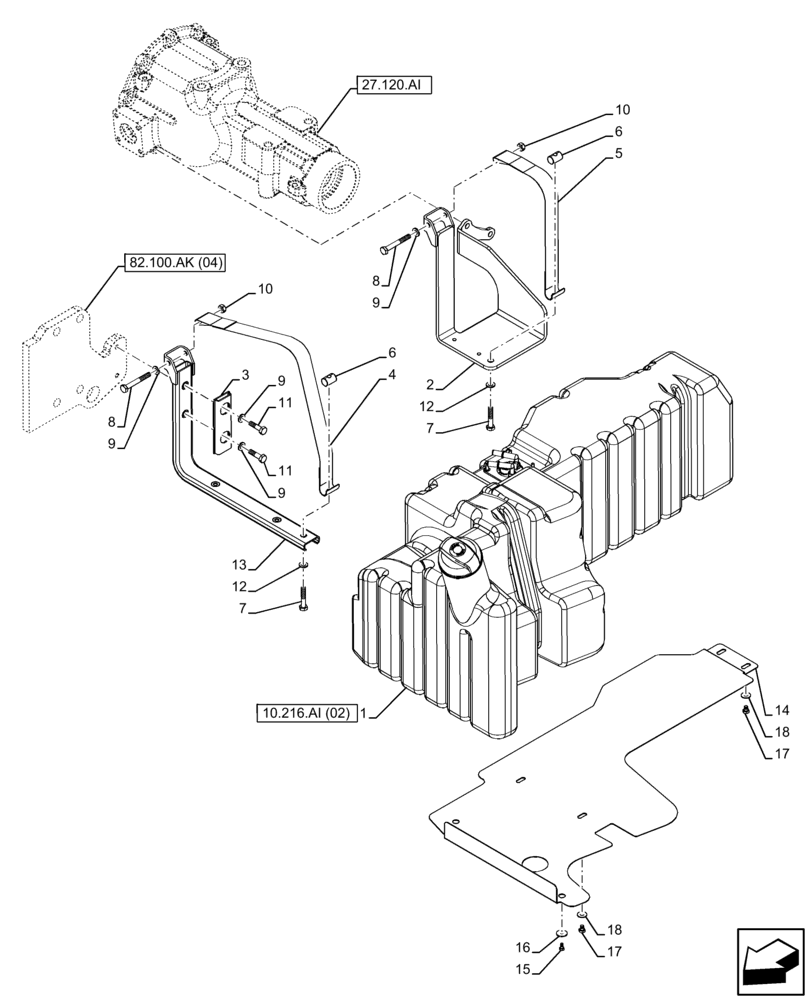

Запчасти Case IH FARMALL 75C (10.216.AI[01]) - VAR - 332136, 390210, 743543, 744574 - FUEL TANK, SUPPORT (10) - ENGINE

1

47418688

FUEL TANK

ASSY

1шт.

2

84367175

SUPPORT

Rear

1шт.

3

84256988

SUPPORT

1шт.

4

84281795

WEATHERSTRIP

Front

1шт.

5

84281802

WEATHERSTRIP

Rear

1шт.

6

5184438

PIN

20mm x 30mm

2шт.

7

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

8

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

2шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

11

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

12

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

13

84256984

SUPPORT

Front

1шт.

14

84257021

PLATE

1шт.

15

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

16

12640624

WASHER,6.15mm ID x 25mm OD x 2mm Thk

6.15 x 25 x 2

2шт.

17

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

18

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.
