Запчасти Case IH FARMALL 75C (10.206.AG[01]) - VAR - 332136, 390210, 743543, 744574 - FUEL FILTER, SUPPORT (10) - ENGINE

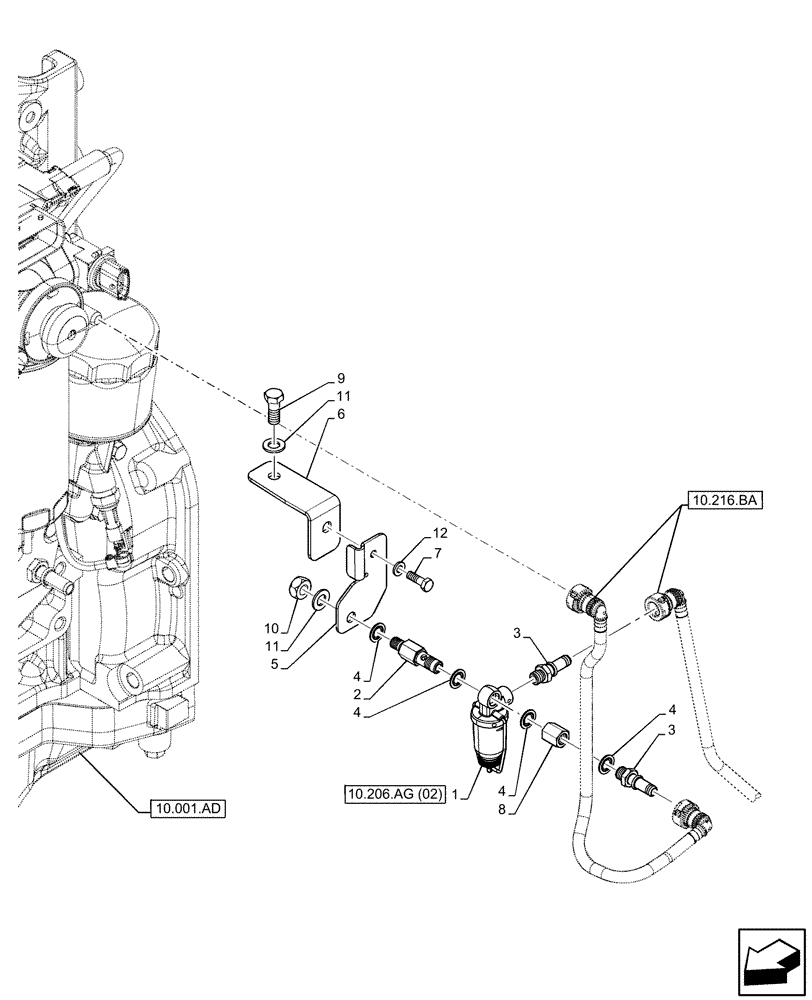

Схема запчастей Case IH FARMALL 75C - (10.206.AG[01]) - VAR - 332136, 390210, 743543, 744574 - FUEL FILTER, SUPPORT (10) - ENGINE
10.216.ba
3
4
5
4
4
12
2
8
11
7
3
10
9
10.001.ad
10.206.ag (02)
1
11
4
6

Артикул

Название

Примечание

Количество

1

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Fuel, Precleaner

1шт.

2

84364449

ADAPTER,M14 x 1.5mm / M12 x 1.25mm, 69.5mm Length

1шт.

3

84423906

PIPE FITTING,M14 x 1.5mm / 11.8mm OD

2шт.

4

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

5

47424634

BRACKET

1шт.

6

47455214

BRACKET

1шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

84364450

FLANGE NUT,Hex, M14 x 1.5, 22.5 Thd

M14 x 1.5mm, 22.5mm H

1шт.

9

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

10

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

1шт.

11

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

Выбрано товаров: 12
