Запчасти Case IH FARMALL 75C (10.202.AH ) - VAR - 390200 - AIR CLEANER, SUPPORT (10) - ENGINE

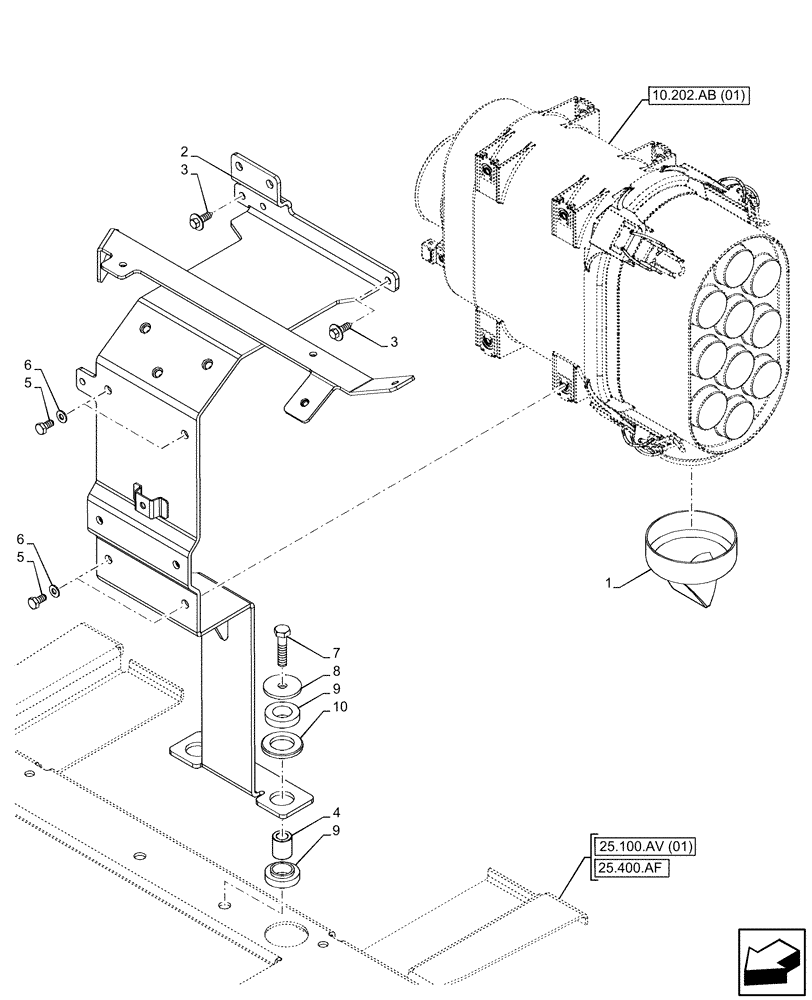

Схема запчастей Case IH FARMALL 75C - (10.202.AH ) - VAR - 390200 - AIR CLEANER, SUPPORT (10) - ENGINE
9
5
10.202.ab (01)
7
6
3
6
4
25.100.av (01)
10
1
5
9
2
25.400.af
8
3

Артикул

Название

Примечание

Количество

1

87347229

PROTECTION CAP,84mm OD x 68mm L

1шт.

2

47458254

BRACKET

1шт.

3

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

2шт.

4

87550824

SPACER

10.5mm ID x 18mm OD x 20.5mm H

2шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

6

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

7

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

2шт.

9

4952241

PAD

18mm ID x 32mm OD x 10mm H

4шт.

10

10731214

WASHER,22.4mm ID x 38mm OD x 4mm Thk

22.4mm ID x 38mm OD x 4mm Thk, DAC

2шт.

Выбрано товаров: 10
